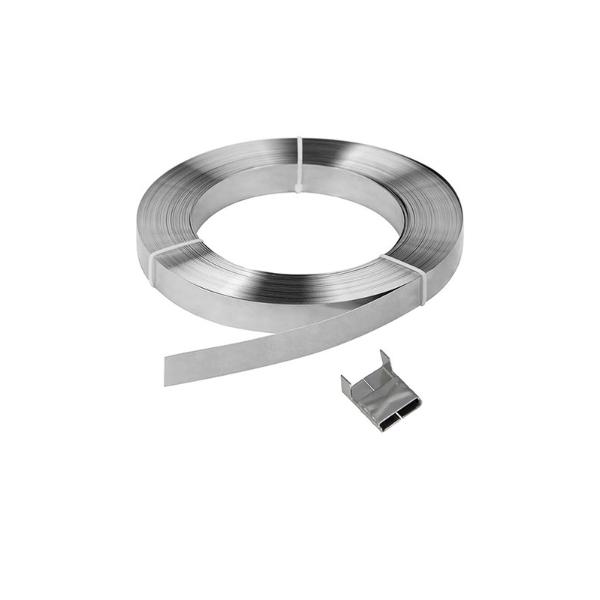

Aluminum Band & Clip

EXCELL-HVAC Aluminum Band is manufactured from high-quality aluminum alloy and conforms to ASTM B-209.

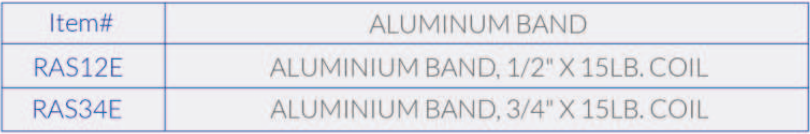

EXCELL-HVAC Aluminum Band is available in 1/2″ and 1/2″ widths with a thickness of 0.50 mm. It was specially developed for tightening insulation materials around equipment or piping, as well as for HVAC Ducting Industries to tighten insulation materials around ducts, with the following specifications.

Chat with Us

EXCELL-HVAC Aluminum Band is manufactured from high-quality aluminum alloy and conforms to ASTM B-209.

EXCELL-HVAC Aluminum Band is available in 1/2″ and 1/2″ widths with a thickness of 0.50 mm. It was specially developed for tightening insulation materials around equipment or piping, as well as for HVAC Ducting Industries to tighten insulation materials around ducts, with the following specifications.

Chemical Composition Limits:

AL                 remainder

SI                  0.6% maximum

FE                 0.7% maximum

CU                0.3% maximum

MN               0.3-0.8%

MG               0.2-0.8%

CR                0.2% maximum

ZN                0.4% maximum

TI                  0.1% maximum

Other           0.05% maximum each (0.15% total)

Specifications:

ASTM B-209

Alloy: Aluminum 3105

Temper: H14
