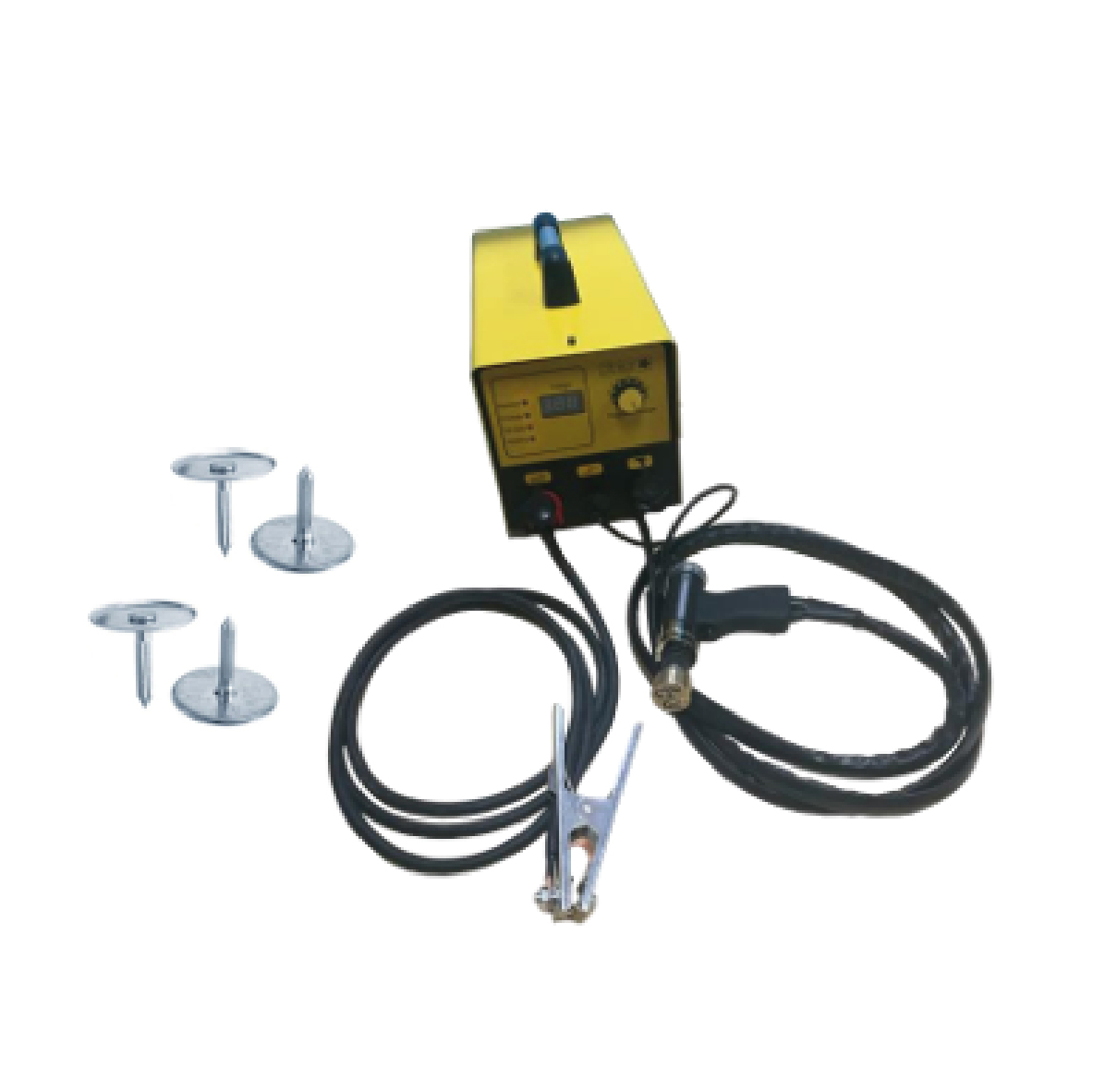

The EXCELL-HVAC Pin Spotter Machine specially desingned welding transforemers allow to deliver
more power, precisely timed to the welding tip. The EXCELL-HVAC Pins Spotter Machine will weld pins
from ½ inch to 4 inches long on steel from 26 to 20 gauge.

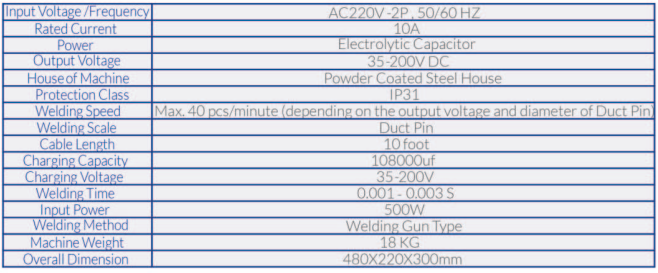

Specifications

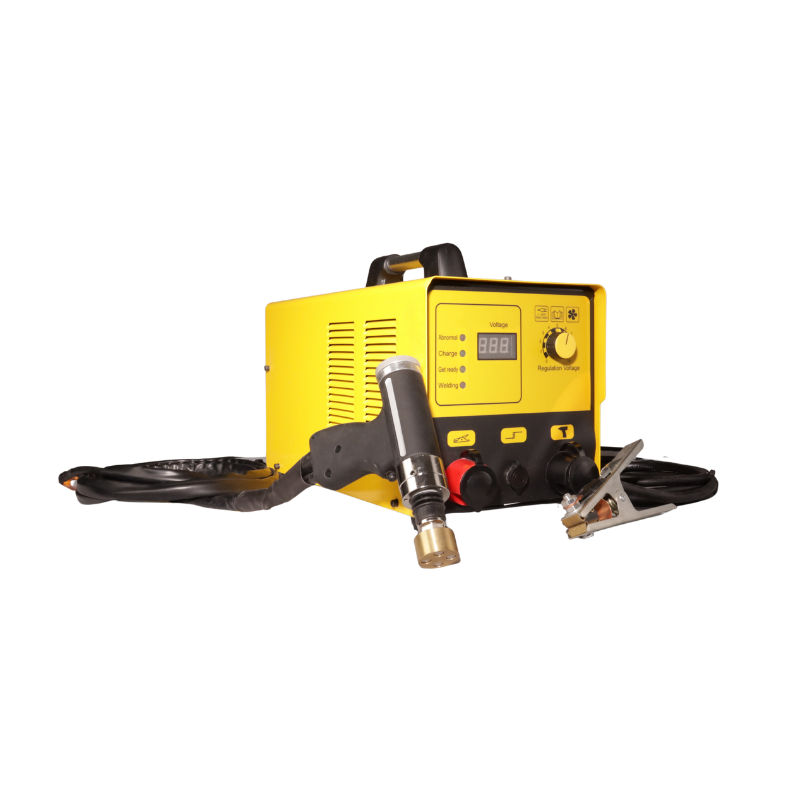

EWM Excell spotter machine
The needle sharp point enabeles the operator for easy push the fastner
through the insulation into firm electrial contact with the metal duct.

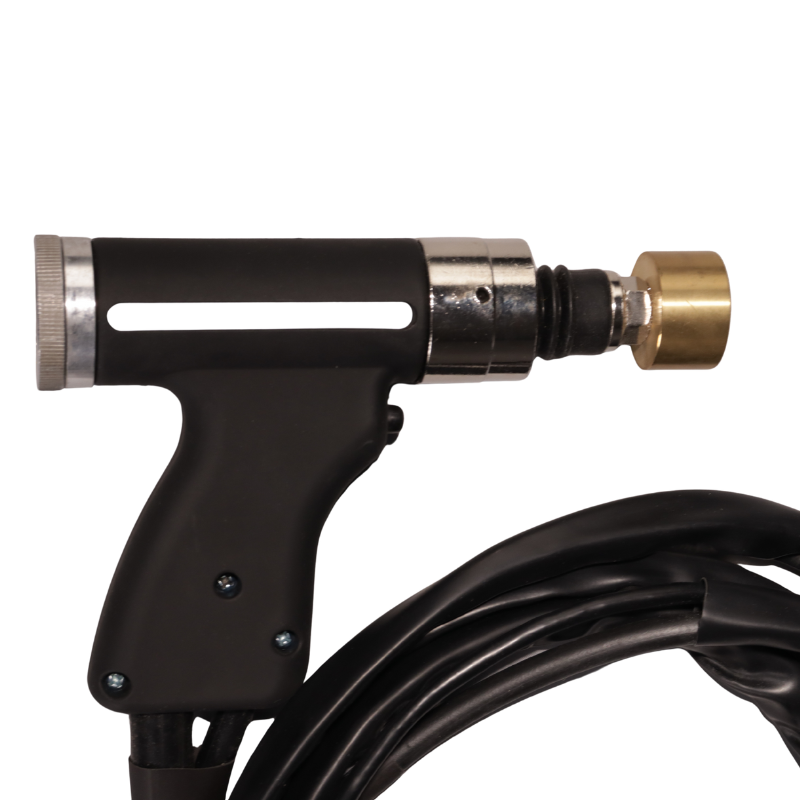

The welding cycle activated by pressing the switch on the Gun.
Current flowing through the fasterner’s high resistance point of contact creates instantaneous welds of extremely high strength.
The flow of material during the weld, firmly attach and supports the fastener.
It prevents breakaway while handling ducts during transport and installation.
The Fasterners are permanently welded in position flush with insulation.
Part Numbers:
