ASHRAE-CELL-CELL

EXCELL-HVAC ASHRAE-CELL FILTERS provide high efficiency filtration where a clean air environment is a necessity. This
includes Hospitals, laboratories, Office Buildings, Food and Beverage Processing plants, etc.
Since filter performance does not get significantly affected by changing air velocity or repeated fan shutdown, making it
the ideal filter choice for variable volume systems. EXCELL-HVAC ASHRAE-CELL makes upgrading of an existing filtration
system simple.

Chat with Us

PRODUCT DESCRIPTION
EXCELL-HVAC ASHRAE-CELL FILTERS provide high efficiency filtration where a clean air environment is a necessity. This
includes Hospitals, laboratories, Office Buildings, Food and Beverage Processing plants, etc.
Since filter performance does not get significantly affected by changing air velocity or repeated fan shutdown, making it
the ideal filter choice for variable volume systems. EXCELL-HVAC ASHRAE-CELL makes upgrading of an existing filtration
system simple.
EXCELL-HVAC ASHRAE-CELL can be easily installed where lower efficiency filters no longer meet the filtration needs.
IMPORTANT FEATURES
• Commercial Buildings.
• Data Centers
• Food and Beverage
• Healthcare
• Hospitality
• Industrial
• Microelectronics
• Museums & Historic Storage
• Pharmaceutical
• Schools and Universities
1) DESIGN & CONSTRUCTION

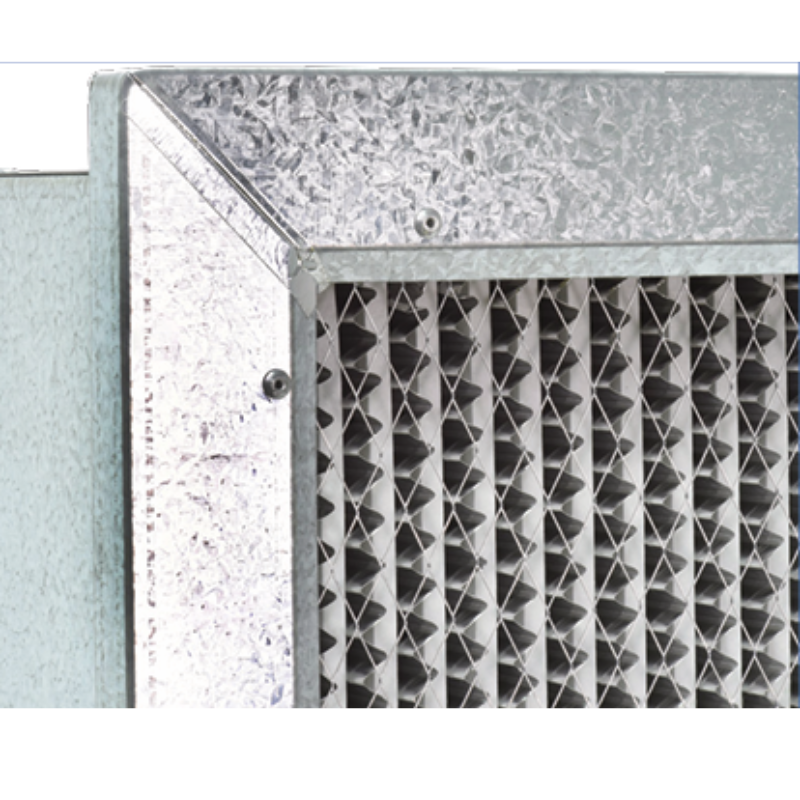

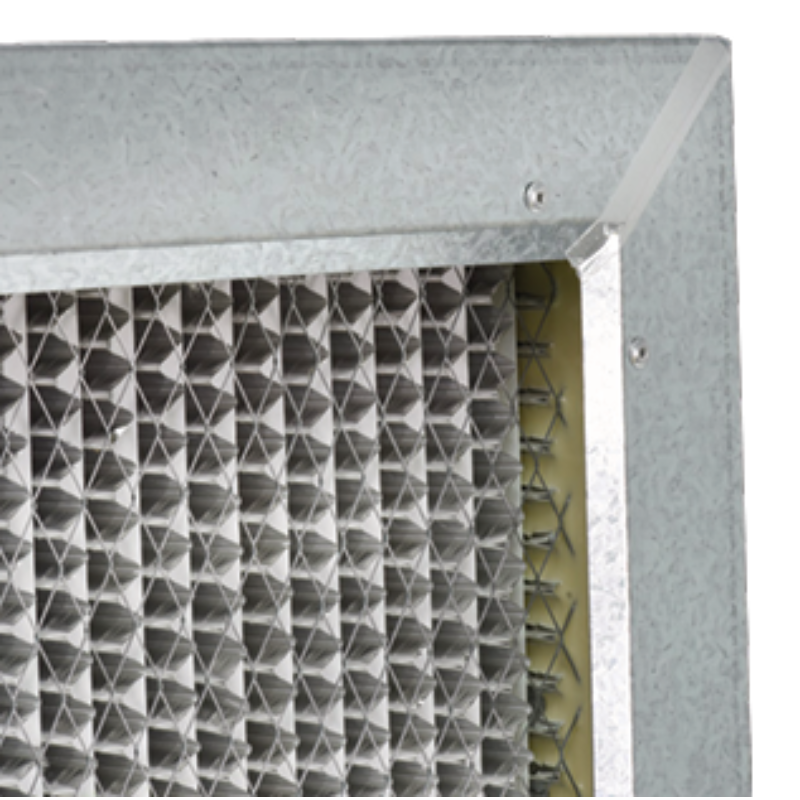

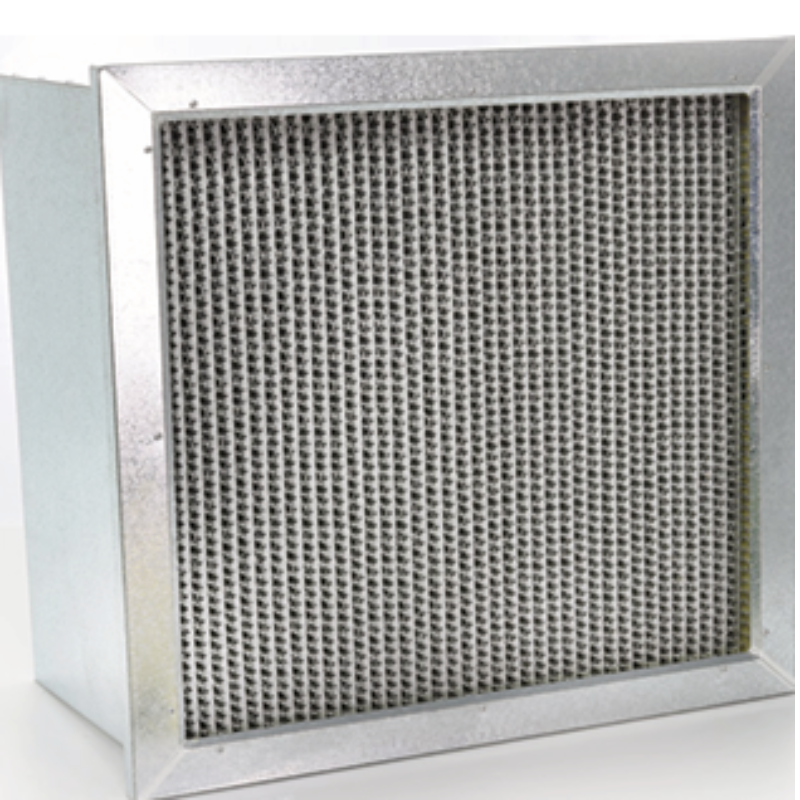

EXCELL-HVAC ASHRAE-CELL filter is constructed of high strength water resistant glass micro-fiber paper in a pleated de
sign. A corrugated aluminum separator is placed between each pleat of media to prevent the pleats from touching.
This allows free flow of air into and through the filter. The separators also add rigidity to the construction
The front and rear edges of the separators are rolled over to eliminate sharp edges that could damage the media during
shipping and handling.
The media pack is installed into a heavy 0.50mm galvanized steel enclosure frame. A sealant is then applied to provide a
positive seal between the media and the frame. Optional face guards are available on the air entering or air leaving sides of
the filter upon request.
2) ASHRAE RATING
The ASHRAH-CELL is available in three efficiency ranges
ASHRAE test standard 52.1-1992: 98%, 95%, 85% and 65%,
ASHRAE test standard 52.2-2007: MERV 15, 14, 13 and 12

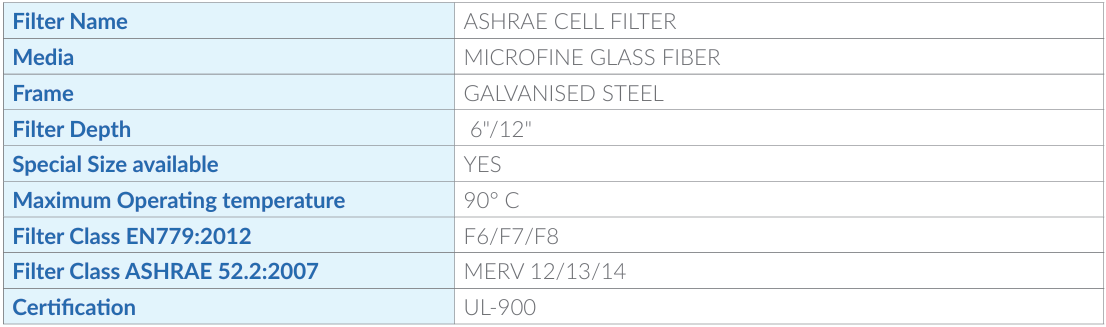

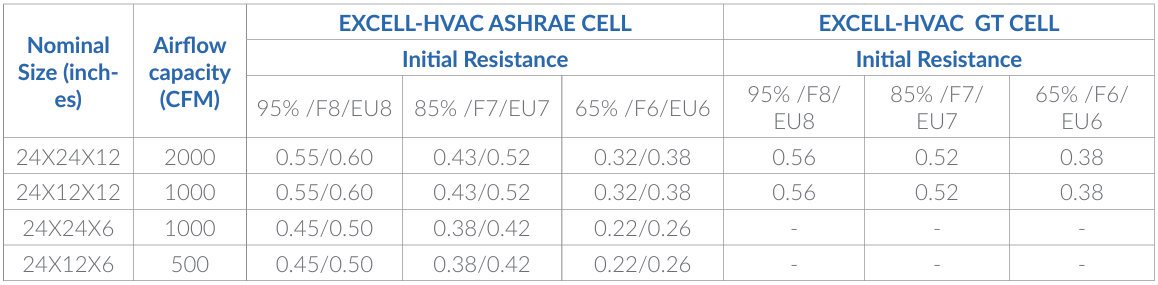

3) SPECIFICATIONS:
