PRODUCT DESCRIPTION
EXCELL-HVAC Electrostati Filters operate on a simple principle of Static Electricity. These unique filters remove up to 85%
by weight of pollen, dust, mold, pet dander and other indoor pollutants. Available in various sizes, they are an excellent re
placement for inefficient disposable air filters.
IMPORTANT FEATURES
• Easy to install.
• Simply remove your present filter and replace it with EXCELL-HVAC STAT.
• Easy to clean. Just use a vacuum cleaner, or water spray and rinse, drain and replace when dry.
• Drain holes are provided in the frame for easy drainage of water after cleaning.
1) DESIGN & CONSTRUCTION
• Retainers on both sides for rigidity.
• The unique design of EXCELL-HVAC STAT filter gives it higher efficiency and more dust holding capacity, with a lower
resistance to airflow.
• Long lasting materials used in the construction of this filter makes it a “permanent” filter, which can be used, and reused
for many years.
• Standard and custom sizes available in 1” and 2” nominal frame thickness.
• Non-allergenic media is unaffected by moisture or washing,
2) ASHRAE RATING
EXCELL-HVAC Electrostatic Filter supports the ASHRAE 52.1-92 methods as the professionally accepted standards for air
filtration. The average arrestance value up to 80%-90%.

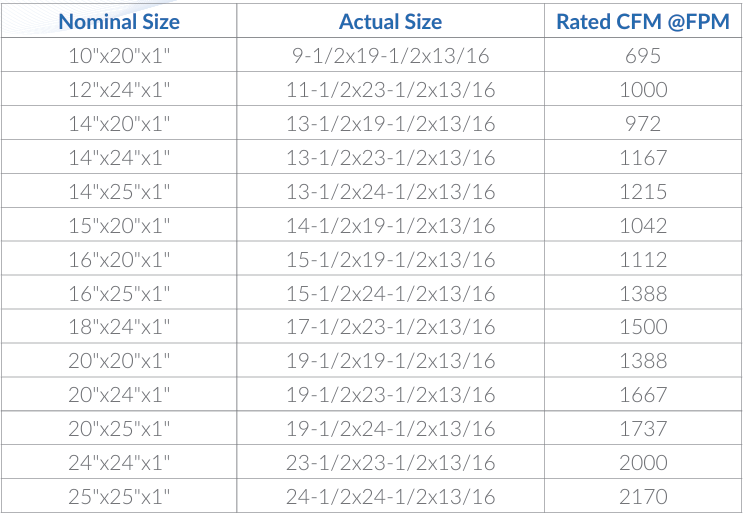

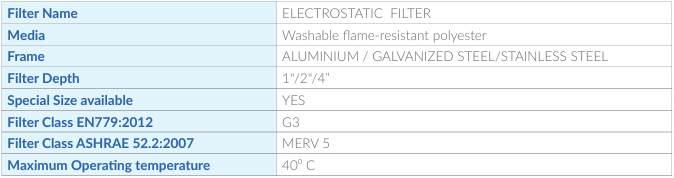

3) SPECIFICATIONS:
