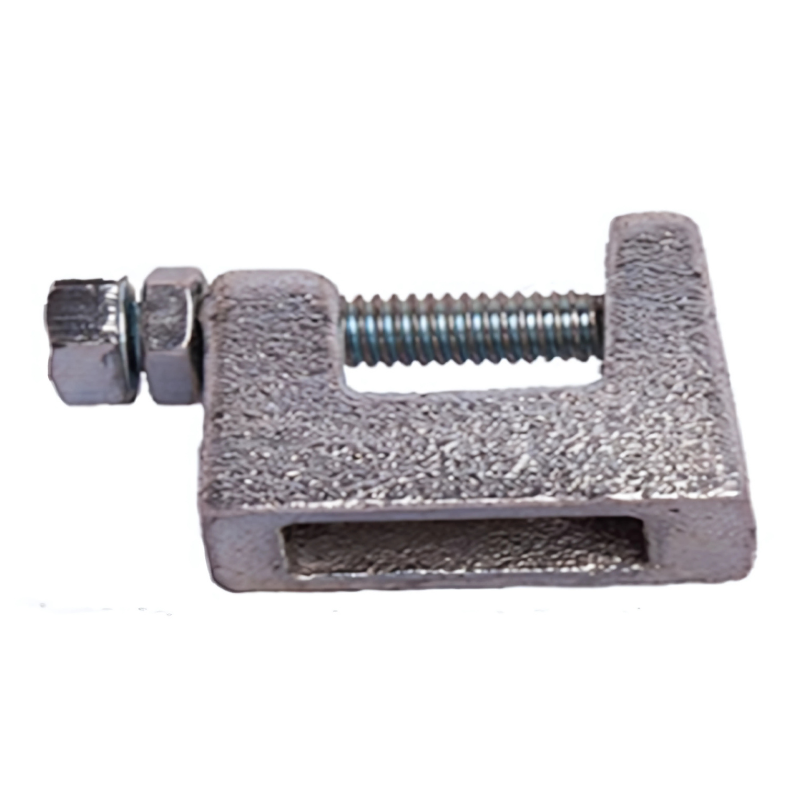

Girder Clamps

Advantages:
For attachment of pipelines, air ducts, and sprinkler systems to steel girders.
Fixing on the girder witho…

Chat with Us

Advantages:

  • For attachment of pipelines, air ducts, and sprinkler systems to steel girders.
  • Fixing on the girder without welding or drilling.
  • Subsequent alignment on the girder is possible.
  • Quick, subsequent height adjustment of the threaded rods at the non-threaded through-hole.

Construction Features:

  • Malleable Cast Iron.
  • Zinc-plated casting tolerance according to DIN 1684 GTA/17.
  • Hexagon Threaded Head Screw DIN 933 8.8.
  • Threaded and with Cup Point (RS) according to EN ISO 4753.

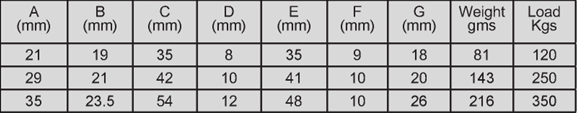

Technical Data:

  • Applicable for sprinkler systems, heating, ventilation, air conditioning, acoustic tubes, and sanitary installations
