PRODUCT DESCRIPTION and Design

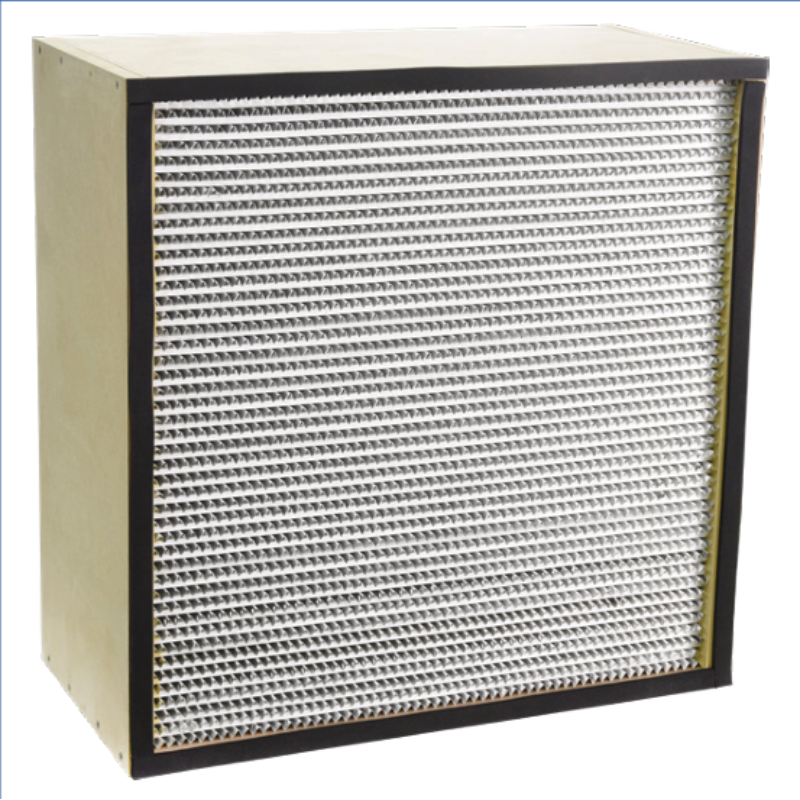

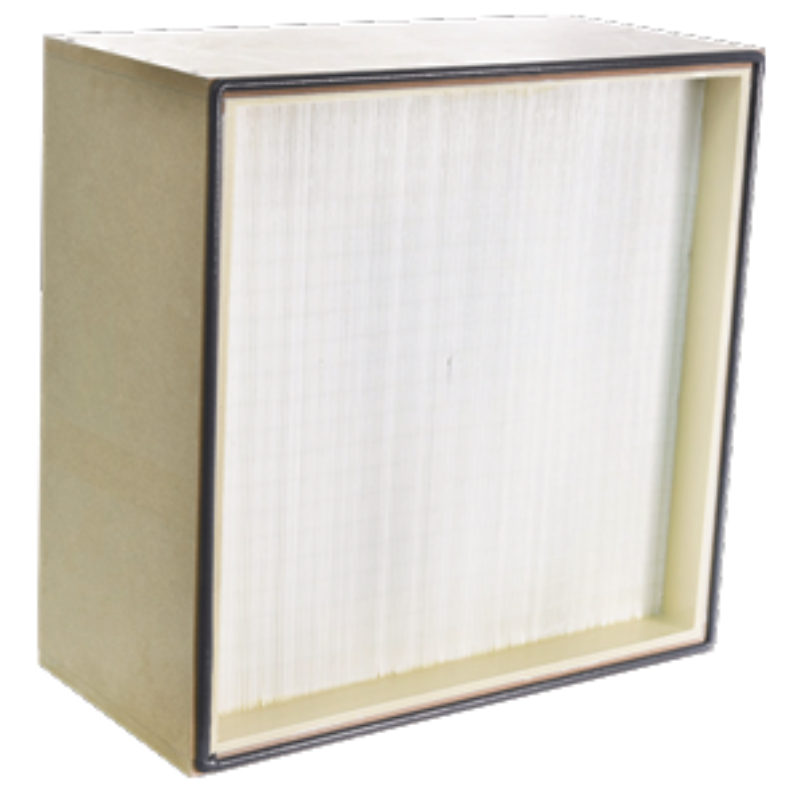

EXCELL-HVAC HEPA BIO FILTERS are designed with continuous sheet of special micro fine glass-fiber filter medium is
pleated into a vee configuration with corrugated aluminum separators inserted between the pleats. This forms the filter
element, which is bonded into a rigid corrosion-resistant steel frame with all joints encapsulated and sealed in a special

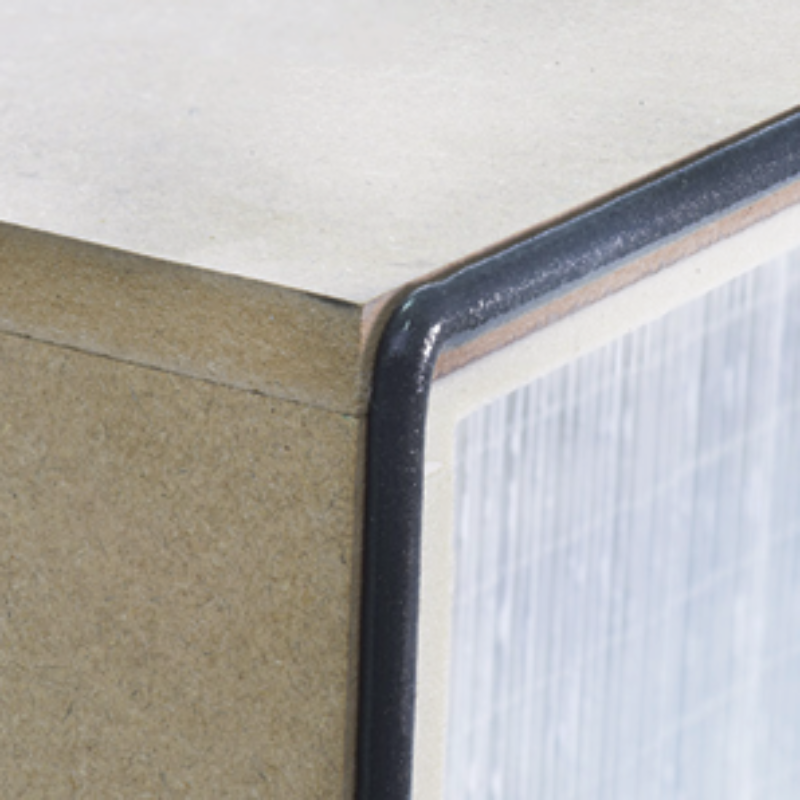

urethane elastomer. Standard filters have a closed-cell neoprene gasket on the air-leaving side, and filters for fluid seal in
stallation have an extended frame with a 60 mm skirt to engage the sealant channel. Filters are produced in a wide range
of face dimensions and in two standard depths of 150 mm and 300 mm nominal.
Features and benefits
• Efficiency 95% & 98% down to 0.3micron particles ( H10 & H11 as per EN 1822).
• Deep pleated micro fine glass fiber paper media.

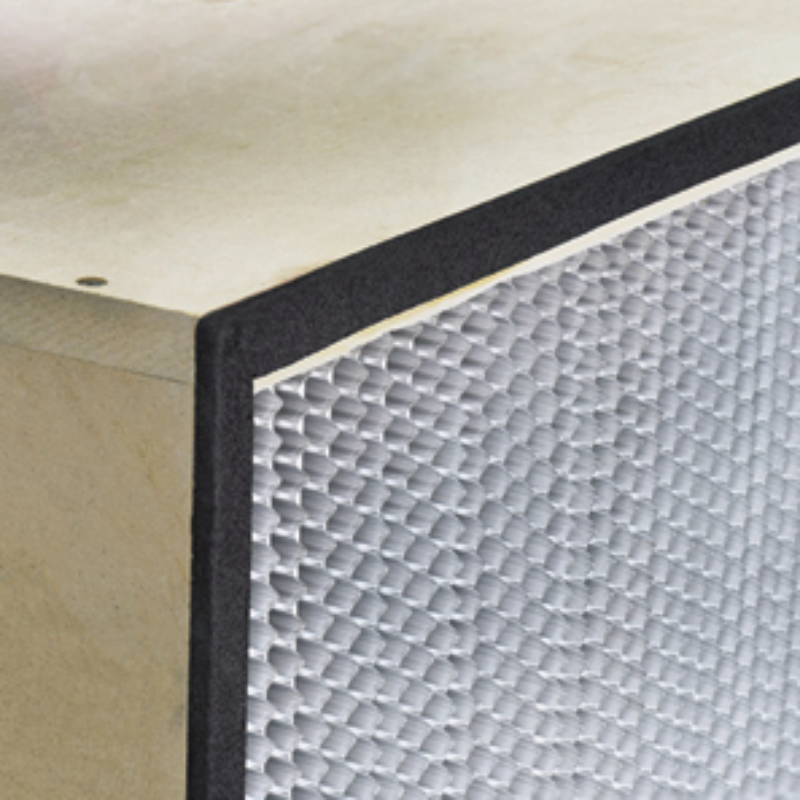

• Corrugated aluminum separators having hemmed edges.
• Two part urethane sealant.
• Wood and Metal constructions.
• With or without header frame.
2) Applications:
• Clean rooms
• Hospital operating theatres
• Biological containment laboratories
• Laminar flow clean benches and safety cabinets
• Food processing plants.
• Research laboratories

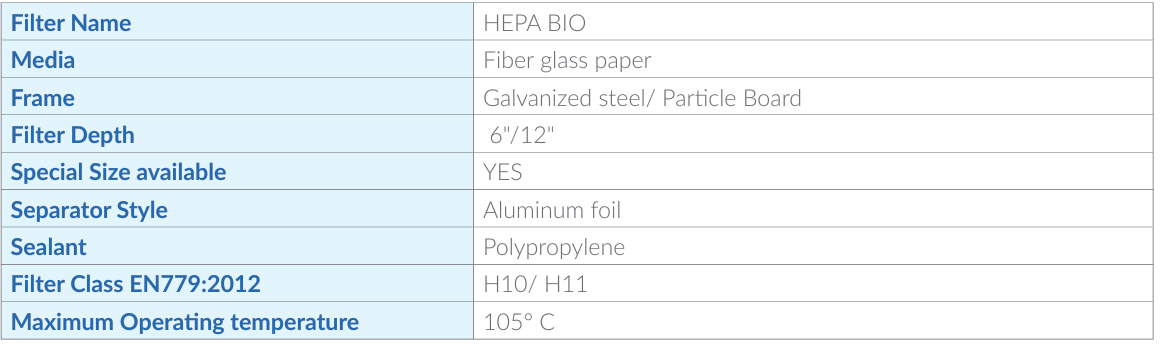

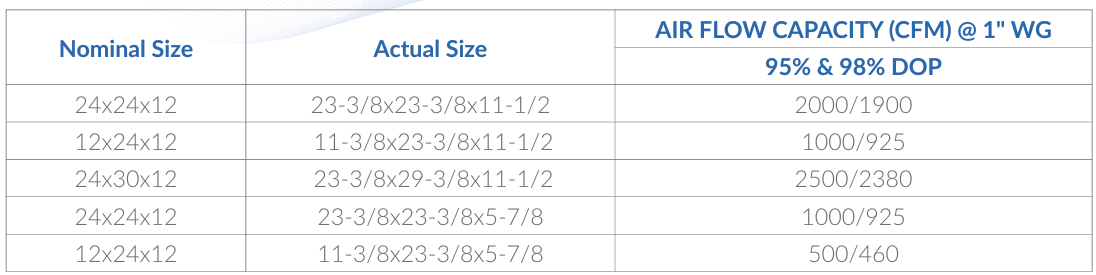

3) SPECIFICATIONS:
