PRODUCT DESCRIPTION
EXCELL-HVAC HEPA HC FILTER (High Capacity) was developed for areas demanding high efficiency particulate air (HEPA)
f
ilter applications.

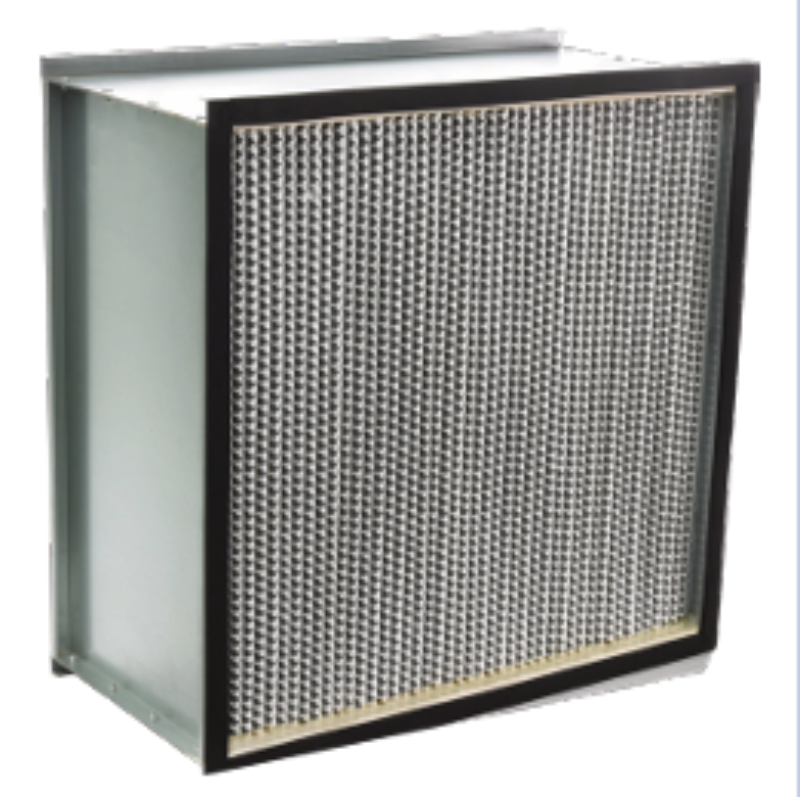

EXCELL-HVAC HEPA HC FILTER is constructed with a robust, aluminum light weight frame, together with our proven
technology, EXCELL-HVAC HEPA HC offers the ultimate in security for the most critical and challenging environments.
Features and benefits
EXCELL-HVAC HEPA HC not only provides security, but also offers the lowest total operating costs of any high efficiency
f
ilter available today.
• Higher airflows require less hardware and filters.
• Lower pressure drop, conserves energy.
• High dust-holding capacity allows for fewer filter change outs.
• Minimizes total operating costs.

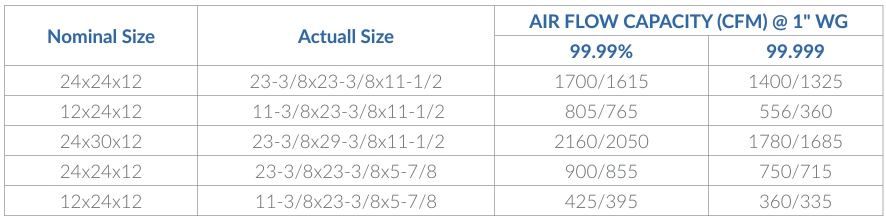

• H-13/H-14 – 375 FM @ l” WG.
• Efficiencies: 99.99% & 99.999% down to 0.3p particles H13 & H14 as per EN 1822.
• Deep pleated micro fine glass fiber paper media.
• Corrugated aluminum separators having hemmed edges.
• Two part urethane sealant.
• Wood and Metal constructions.
• With or without header frame
1) DESIGN & CONSTRUCTION
EXCELL-HVAC HEPA HC FILTERS are constructed with a metal galvanized frame. Styles are available with single inward
turned flange, single outward turned flange or double turned flanges. Frame materials also available are fire retardant wood
particle board, plywood, and a variety of metals which include zinc-coated steel, stainless steel and aluminum. All wood
frames have rabbeted joints for secure seal and ridged construction.

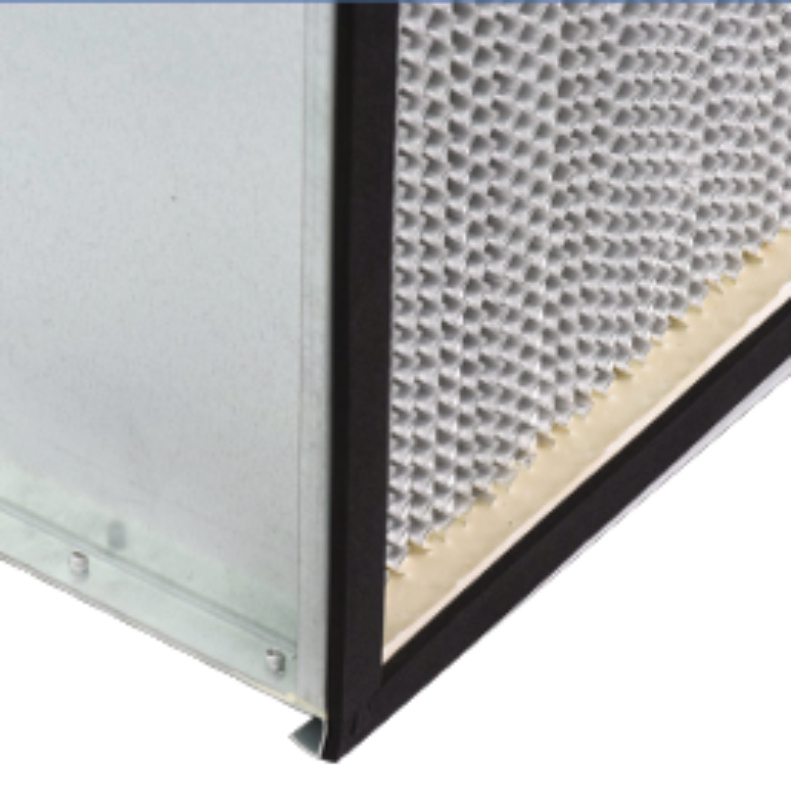

The filter pack consists of a continuous sheet of pleated micro glass-fiber media. Controlled pleat spacing is maintained by
corrugated aluminum separators. The filter pack is secured to the top and bottom of the frame utilizing a two-part high-den
sity fire retardant urethane adhesive.
The adjacent sides are secured using a self-extinguishing rubber based adhesive. A closed cell neoprene gasket is supplied
standard on one side. All EXCELL-HVAC HEPA HC filters constructed with metal frames or fire retardant wood particle
board meet the requirements of UL-900.
EXCELL-HVAC HEPA HC FILTERS are constructed to perform at temperature up to 105° C and at 100% relative humidity.
2) Applications:
EXCELL-HVAC HEPA HC FILTER removes a broad range of airborne contaminants including fine dust, smoke, bacteria,
viruses, soot, pollen and radioactive particles. This filter is widely used to replace all conventional aluminum separator HEPA
f
ilters and other high efficiency HEPA products.
• EXCELL-HVAC HEPA HC FILTER applications include electronic, nuclear, pharmaceutical, hospital, laboratory, aero
space, food processing and optics.
• EXCELL-HVAC HEPA HC FILTERS are to be used along with Pre-Filters.

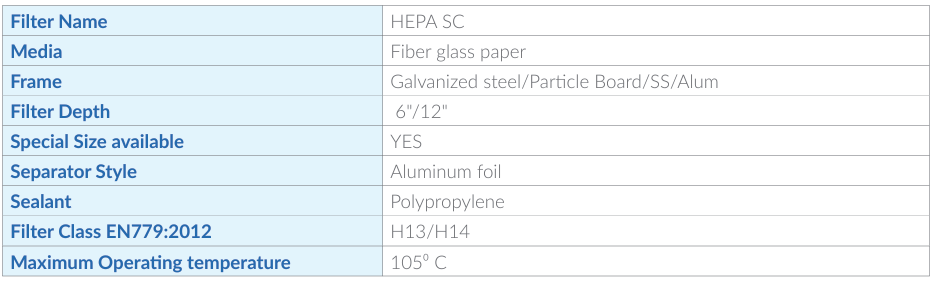

3) SPECIFICATIONS:
