PRODUCT DESCRIPTION and Design

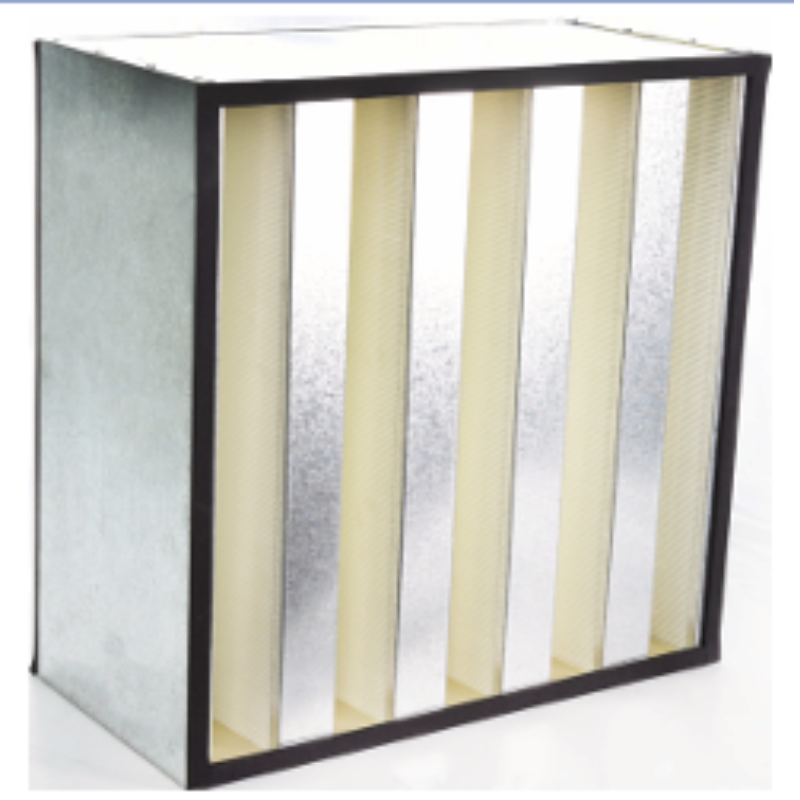

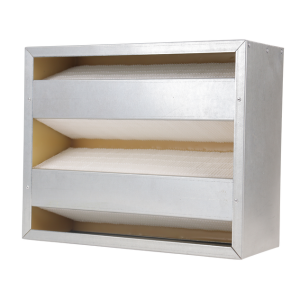

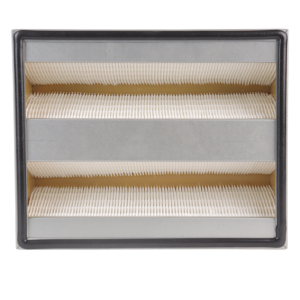

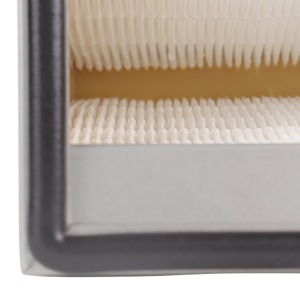

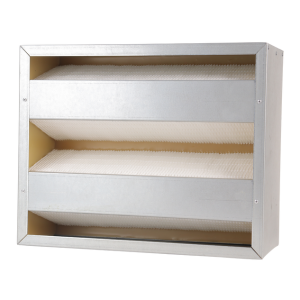

EXCELL HVAC HIGH VOLUME FILTER is assembled by multiple mini-pleat packs formed into six to eight packs of V- type
pleat. It contains up to 90% more media than the standard HEPA SC filter. And it can easily remove air contamination such
as fine dust, smoke, vapor, soot, pollen, bacteria and etc.
The effective media area results in greater flow capacity, lower resistance, and longer life span. With high capacity, low-pres
sure drop & longer life span advantages, EXCELL HVAC HIGH VOLUME FILTERS can be used to replace the traditional
aluminum separator filters.
Features and benefits
• Efficiencies: 99.97%, 99.99%. 99.999% down to 0.3 micron. H13 & H14.

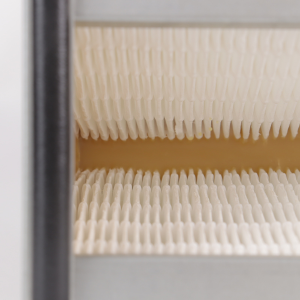

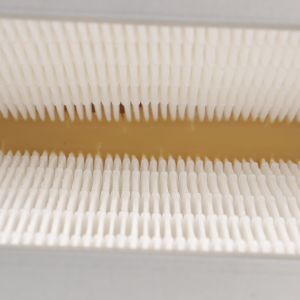

• Water repellent micro fine glass fiber paper media.
• Media packs arranged in a perfect V-shape offering lowest pressure drop.
• Two part urethane sealant.

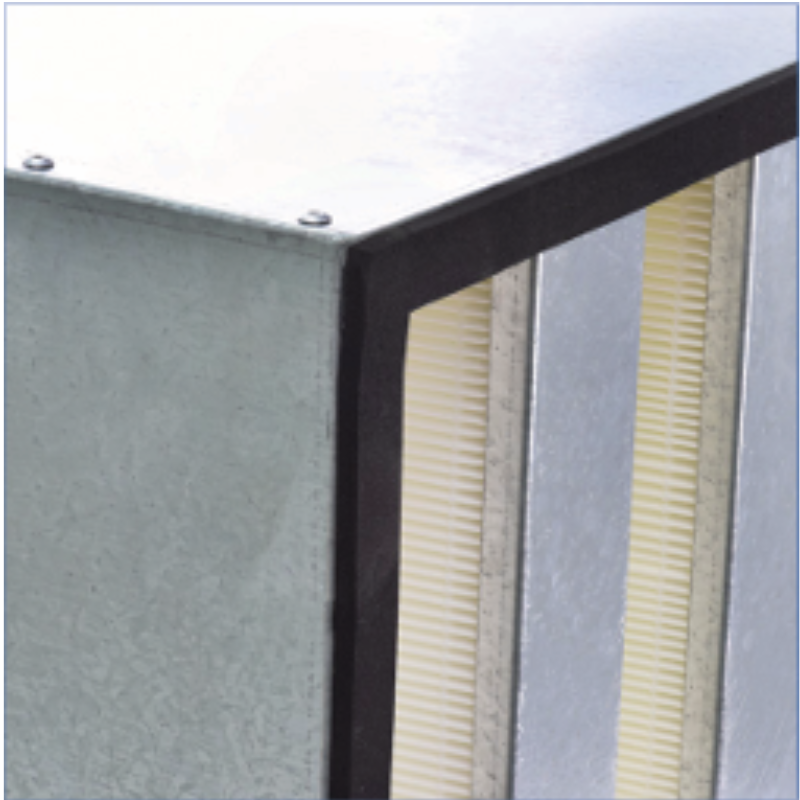

• Metal construction.
• With or without header frame.
1) Applications:
• Clean rooms
• Hospital operating theatres
• Biological containment laboratories
• Laminar flow clean benches and safety cabinets
• Food processing plants
• Research laboratories

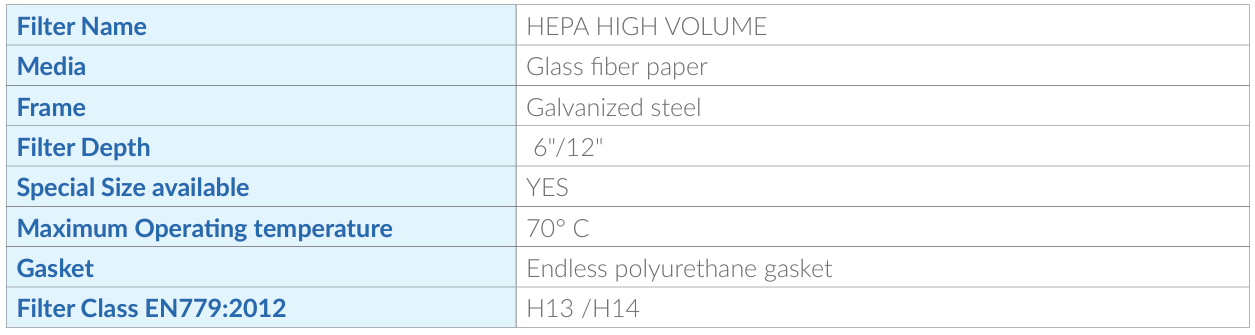

2) SPECIFICATIONS:
