PRODUCT DESCRIPTION and Design
EXCELL-HVAC HEPA LFD FILTERS. These mini pleat panel filters are of low-depth construction and use very close pleating
of the media, with separation of the pleats achieved by means of continuous, narrow beads of a special hot-melt compound.
Typically EXCELL-HVAC HEPA LFD FILTER has similar airflow/pressure drop characteristics to a conventional filter of the
same face dimensions, but has only one third of the depth of the conventional filter. Their lightweight and compact dimen
sions make them the preferred selection for laminar flow cleanrooms and low-profile ceiling modules
Features and benefits
• Available in efficiencies 95% ,98%, 99.97%, 99.99%, 99.999% on 0.3 micron & 99.9995% @ .12 micron particles ( H10
to U15)
• Mini-Pleat panel filters designed for use in laminar flow clean rooms & clean work benches.
• Finely pleated, water repellent micro glass fiber media & thermosetting bead separators.
• Two part urethane sealant Wood and Metal constructions.
2) Applications:
• Clean rooms • Hospital operating theatres
• Biological containment laboratories • Laminar flow clean benches and safety cabinets
• Food processing plants
• Research laboratories

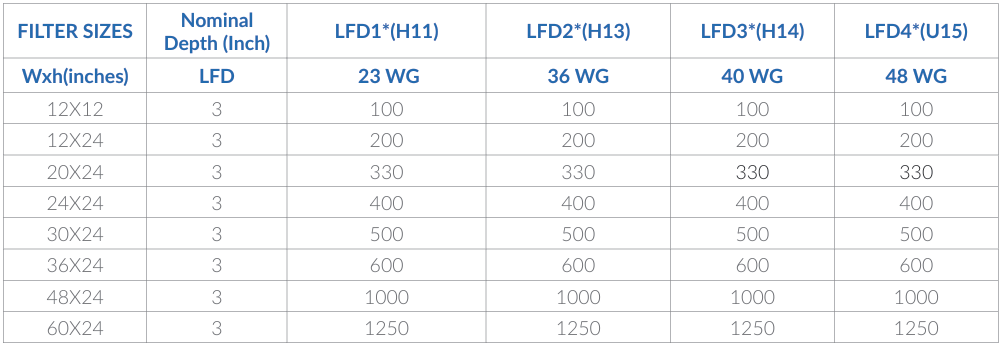

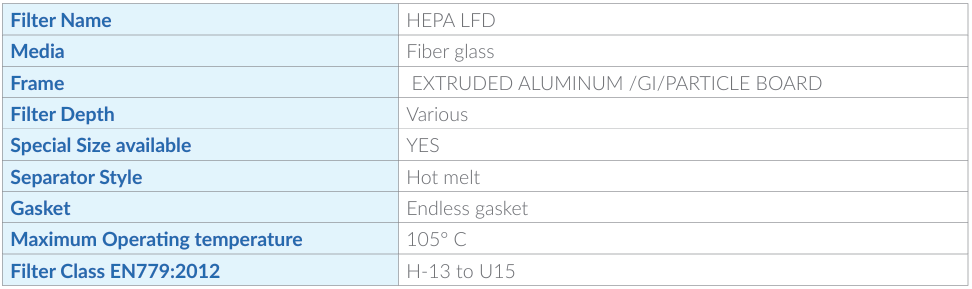

3) SPECIFICATIONS:
