HEPA MINIPLEAT

EXCELL-HVAC HEPA MINIPLEAT FILTERS. These filters are of low-depth construction and use very close pleating of the
medium, with separation of the pleats achieved by means of continuous, narrow beads of a special hot-melt compound.

Chat with Us

PRODUCT DESCRIPTION
EXCELL-HVAC HEPA MINIPLEAT FILTERS. These filters are of low-depth construction and use very close pleating of the
medium, with separation of the pleats achieved by means of continuous, narrow beads of a special hot-melt compound.
Typically, a minipleat filter has similar airflow/pressure drop characteristics to a conventional filter of the same face dimen
sions, but has only one third of the depth of the conventional filter. Their lightweight and compact dimensions make them
the preferred selection for laminar flow cleanrooms and low-profile ceiling modules.

Features and benefits
• Suitable for turbulent flows.
• Mini-Pleat box type filters as an alternative design to aluminum separator style filters for increased airflow lower pres
sure drops.
• Finely pleated, water repellent micro glass fiber media & thermosetting bead separators.
• Two part urethane sealant.
• Wood and Metal construction
• Efficiencies: 99.99 % To 99.999% on 0.3 micron. H13-H14.
2) Applications:
• Clean rooms
• Hospital operating theatres
• Biological containment laboratories
• Laminar flow clean benches and safety cabinets
• Food processing plants
• Research laboratories

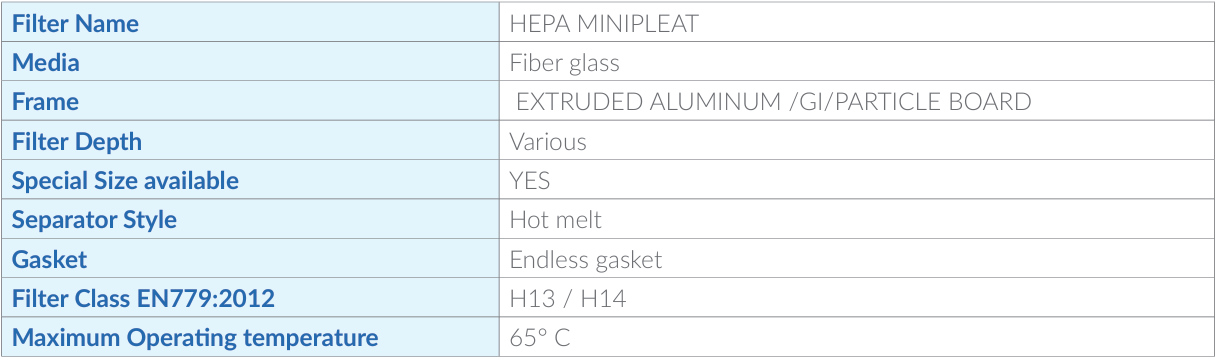

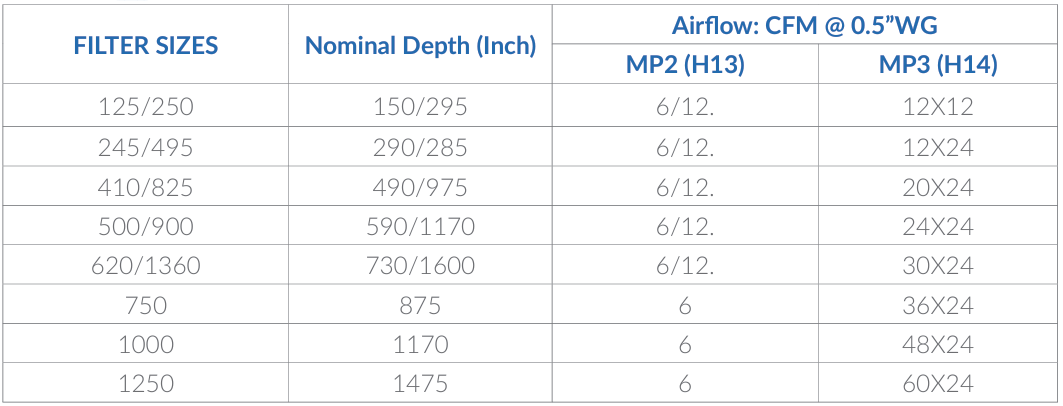

3) SPECIFICATIONS:
