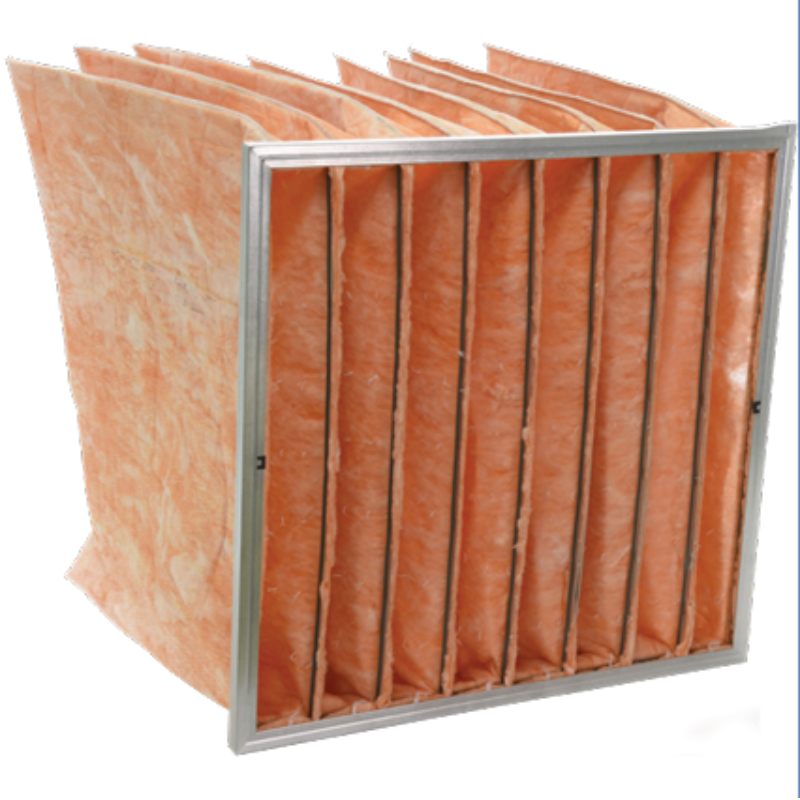

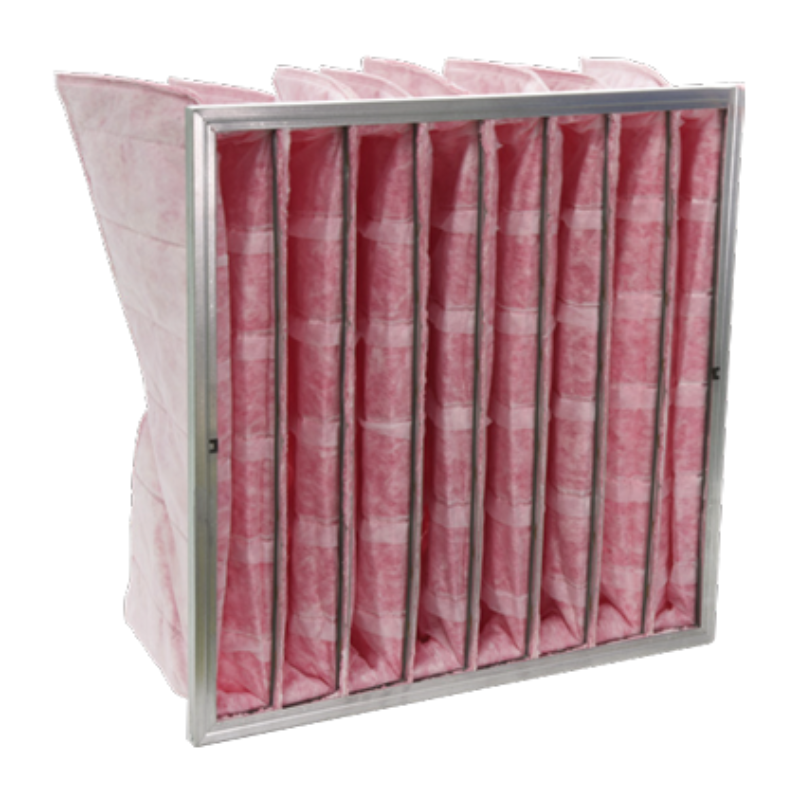

PRODUCT DESCRIPTION
EXCELL-HVAC PAC Filters are designed for use in those areas requiring highest degree of air cleanliness. Typical applica
tions include hospitals, office complexes, industrial facilities, schools and universities.
IMPORTANT FEATURES
• Low-pressure drop provides longer life.
• Unique space stitching provide optimum aerodynamics.
• Wide range of pocket depths, efficiencies and operating capacities are available.
• Edges have an exclusive over lock «Safety Stitch.
• Fire resistant construction.
1) DESIGN & CONSTRUCTION
EXCELL-HVAC PAC Micro fine Fiberglass Media pockets are sealed into a one-piece, galvanized steel header with pockets
separators. Unique space stitching allows full depth loading of each pocket, maximum media utilization and lowest possible
resistance.

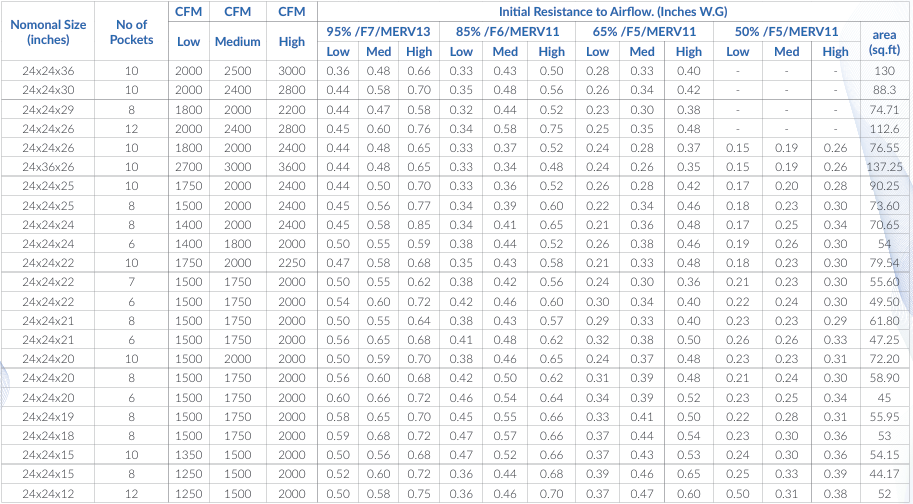

2) ASHRAE RATING
Available in 4 certified color coded efficiency ranges:

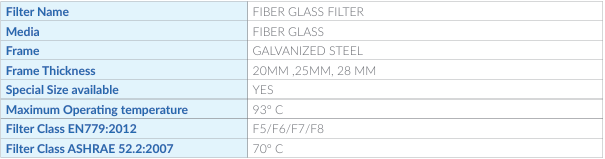

3) SPECIFICATIONS:
