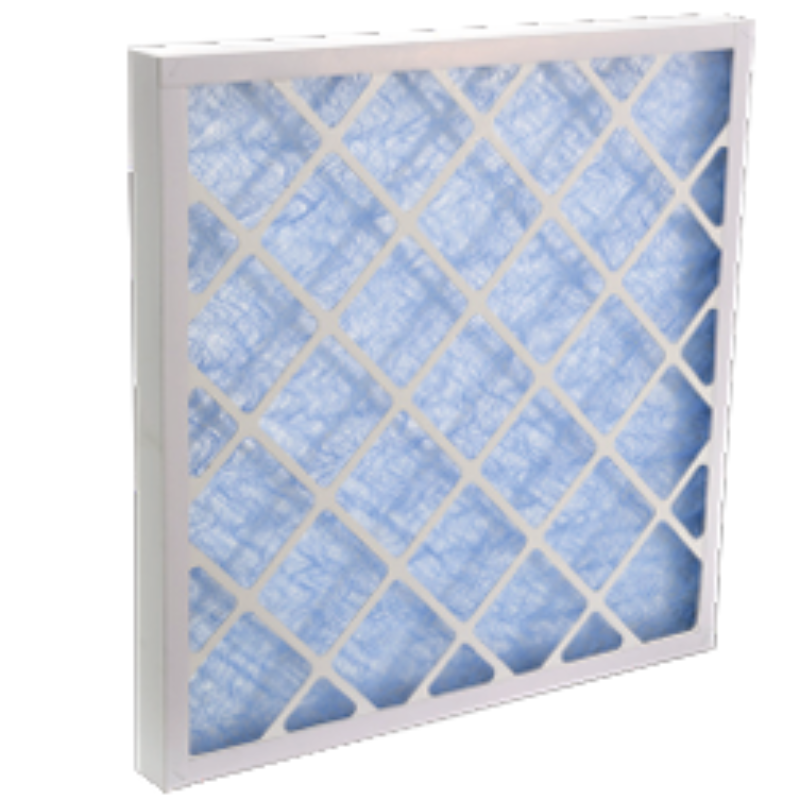

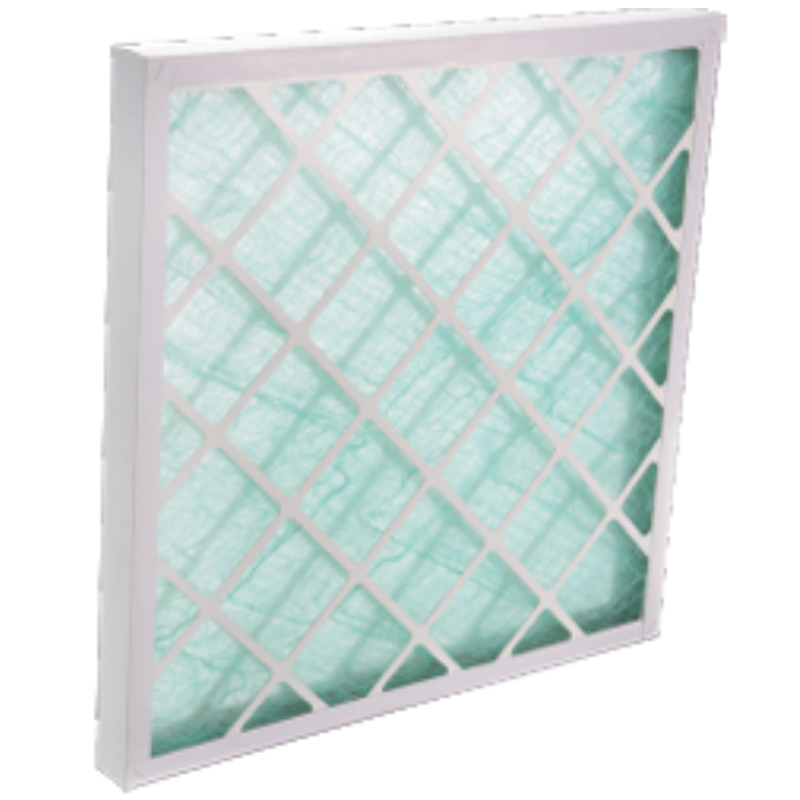

PRODUCT DESCRIPTION
EXCELL-HVAC PANEL FILTERS are disposable filters. They are widely used as pre-filters along with higher efficiency filters,
or to protect heating and cooling coils from becoming coated with dirt.
Suitable for use in air handling units and banks of filter frames, in commercial applications including offices and factories.
IMPORTANT FEATURES
• Filter media will not sag.
• Available in ½”,1» and 2» nominal thickness.
• World-class construction
• Low cost filters.
1) DESIGN & CONSTRUCTION
EXCELL-HVAC PANEL FILTERS are built for heavy-duty applications. Filters are manufactured from progressive density
fiberglass media with high compression strength (to prevent surface loading). A colourless and odourless adhesive retains
the dirt particles within the filter media once they come in contact with the fibers.

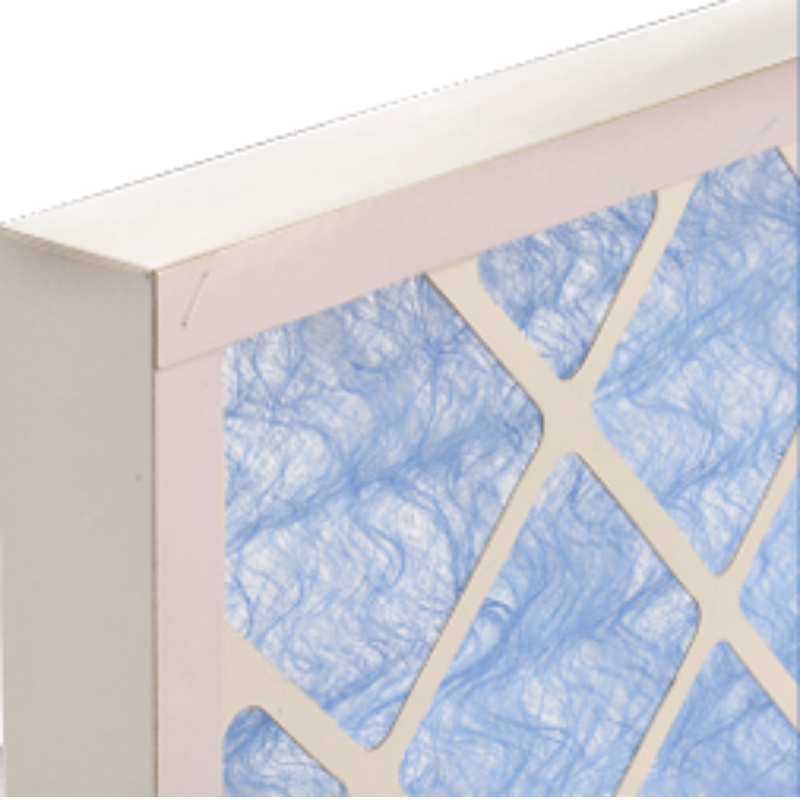

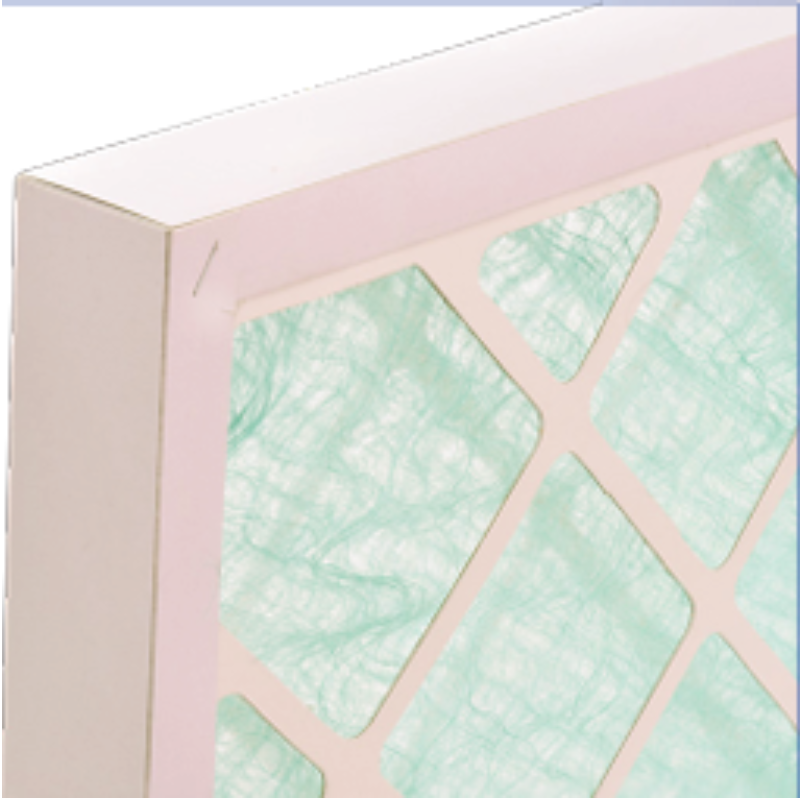

The rugged kraftboard frame, which encases the media, is supported by die-cut frames on both the upstream and down
stream sides. The thermo plastic sealant around the perimeter of the filter frame provides the product high rigidity and
strength.
2) ASHRAE RATING
High arrestance and high dust holding capacity makes the EXCELL-HVAC Panel a leader in the highly competitive market.
Average arrestance value 75-85%.

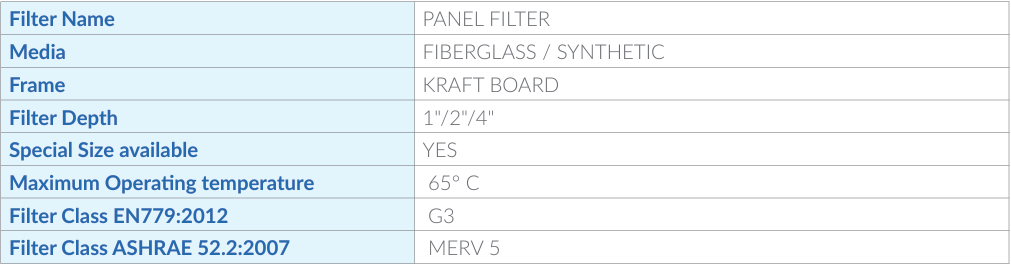

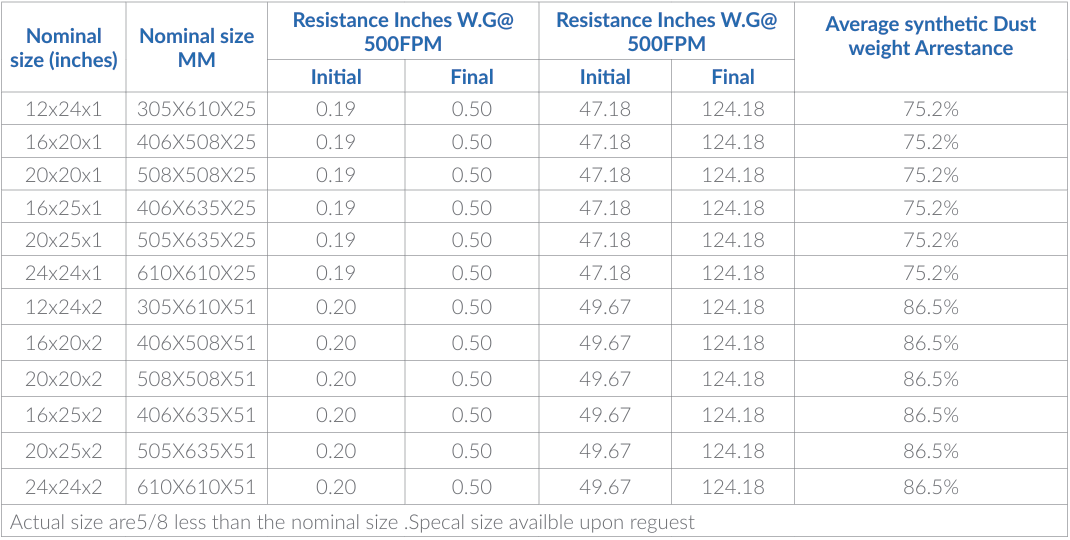

3) SPECIFICATIONS:
