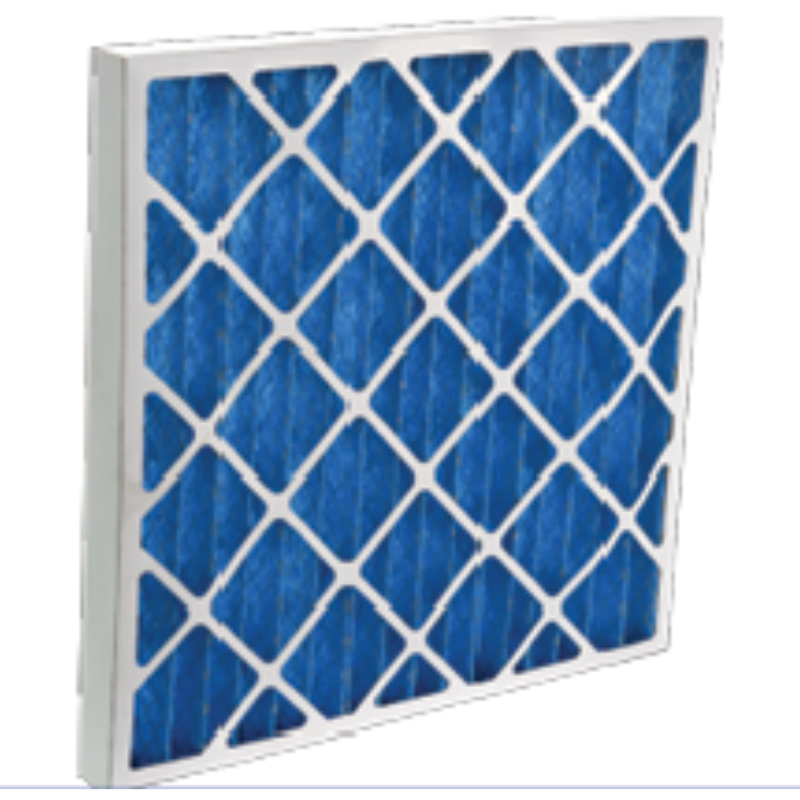

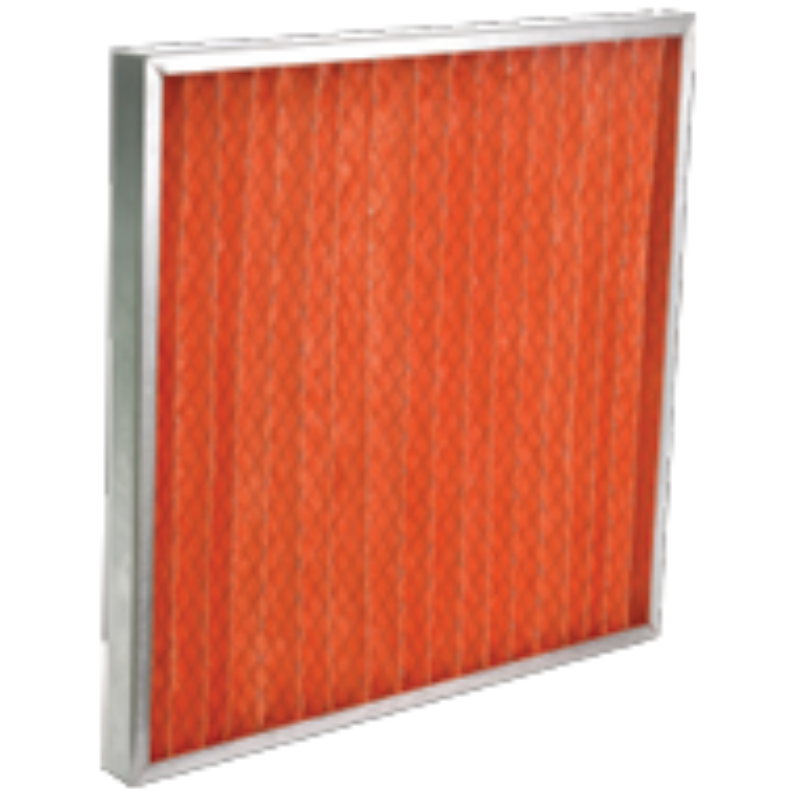

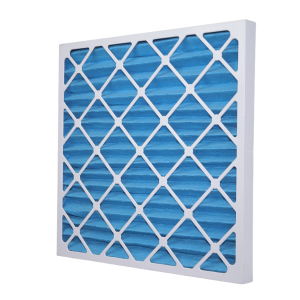

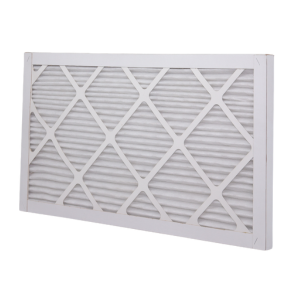

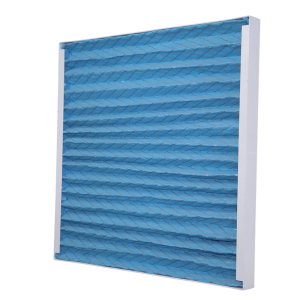

PRODUCT DESCRIPTION
EXCELL-HVAC PLEATED FILTERS are designed for use in a wide variety of commercial, industrial and residential installations,
where a higher air cleaning efficiency is desired than that provided by disposable panel filters
, media pads or permanent
metal filters.
IMPORTANT FEATURES
• Fire resistant construction UI Class-2 listed. (File R. 14863).
• Radial wedge pleats minimize end losses, reduce resistance and saves energy.
• Pleat contour stabilizers for 4» filters.
• Available in 2 capacity ranges and in various sizes.
• Filter media pack is sealed to eliminate air by pass and improve lAQ.
• World class design with double wall construction.
• 3 to 4 times the service life compared to Panel disposable filters.

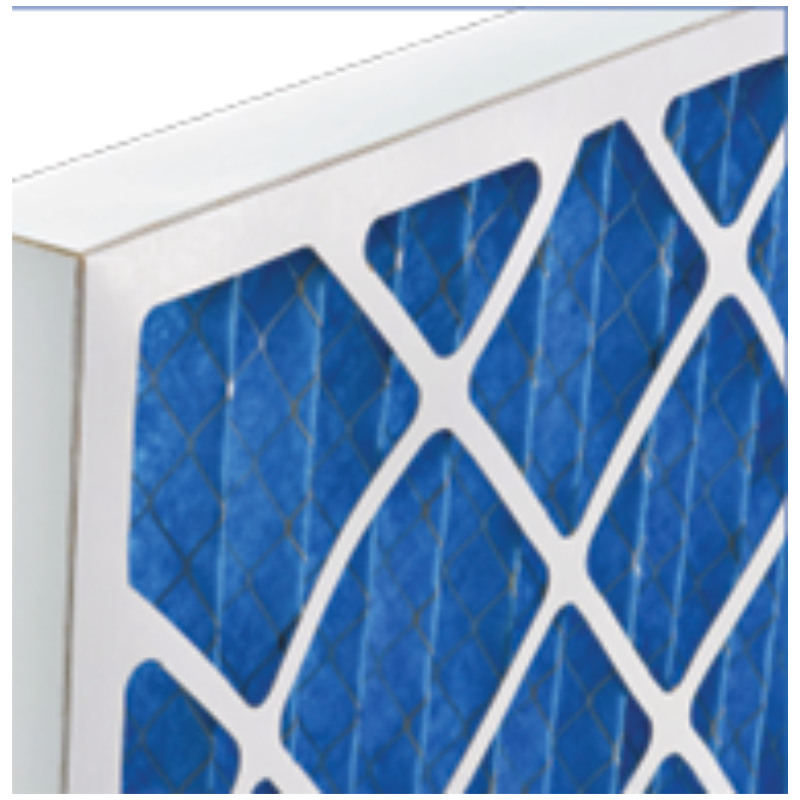

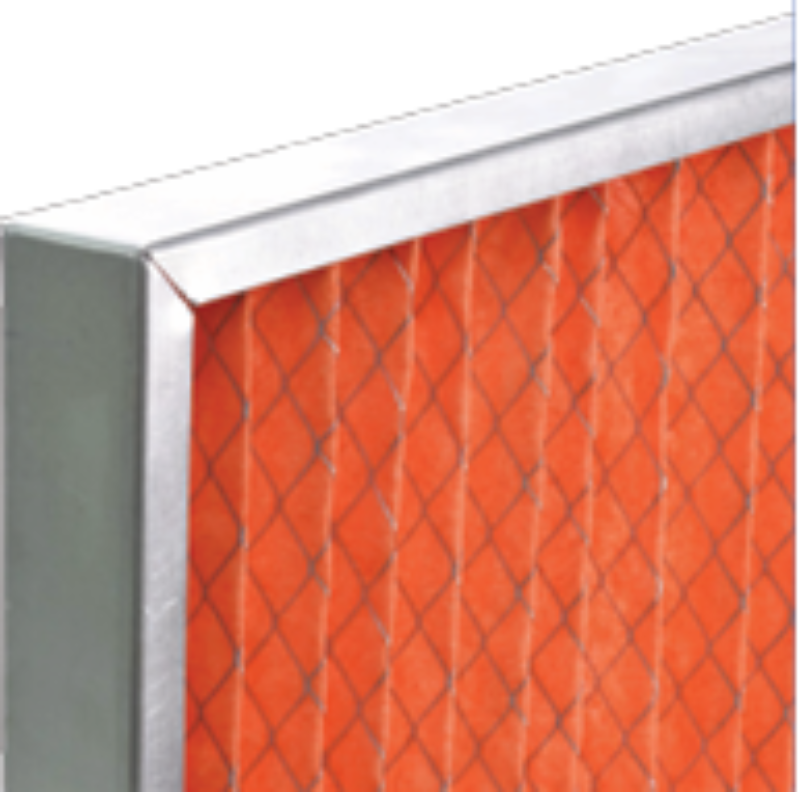

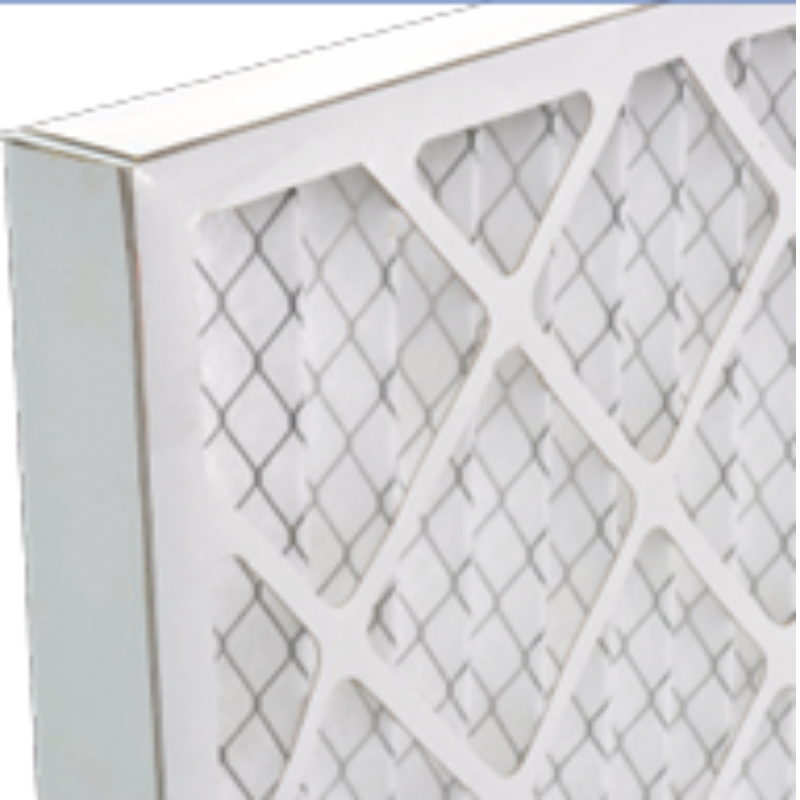

1) DESIGN & CONSTRUCTION
EXCELL-HVAC PLEAT filters offers a complete line of 1», 2» and 4» Pleated filters. Media used is a high loft, reinforced,
non-woven cotton /synthetic blend media. Media is laminated to an expanded metal grid on the air leaving side.
EXCELL-HVAC PLEATED offers a two-piece, die cut, aqua board frame featuring diagonal and horizontal support and
unique locking corners to ensure positive media-to-frame seal.
2) ASHRAE RATING
EXCELL-HVAC PLEAT offers a complete line of Pleated filters in two average efficiencies: 25-30% and 50-55% per ASHARE
Standard 52.1.1992.

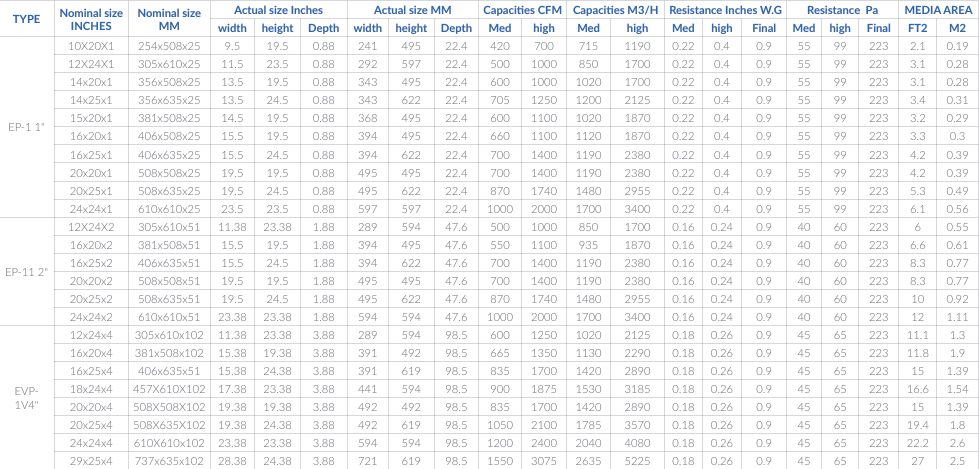

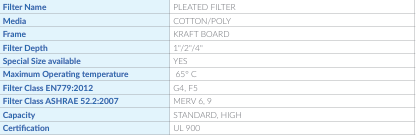

3) SPECIFICATIONS:
