POLY-PAC

EXCELL-HVAC POLY-PAC Filters are medium to high efficiency extended surface self-supported pocket (bag) filters made
of super fine synthetic (polyester) filter media. The progressive density multi –layered fiber arrangement offers excellent
filtration performance combined with very high dust holding capacity.

Chat with Us

PRODUCT DESCRIPTION:

EXCELL-HVAC POLY-PAC filters are ideal air contributing system in Hospitals, Pharmaceutical planets, food processing
planets etc.
IMPORTANT FEATURES:
• Very high dust holding capacity.
• Washable.
• Low Pressure Drop.
• Long Service Life.
• Environmentally friendly.
• Suitable for 100% humidity
1) DESIGN & CONSTRUCTION:

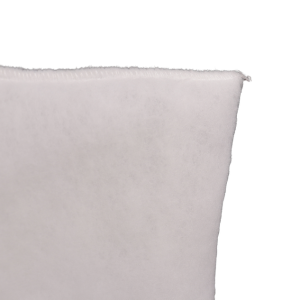

EXCELL-HVAC POLY-PAC, self-supporting bag filters are made up of superior grade synthetic filter media, multi-layered
density fiber arrangement.
The three-stage fiber arrangement has a first layer which act as a pre-filter to the micro fiber second layer and third layer
supports the media fibers. This results in high dust holding capacity, low-pressure drop and longer lifetime. The rigid pockets
are formed by welded construction and aerodynamic design.
2) ASHRAE RATING:
Available in G3 (EN779) 30% (Ashrae Dust Support).

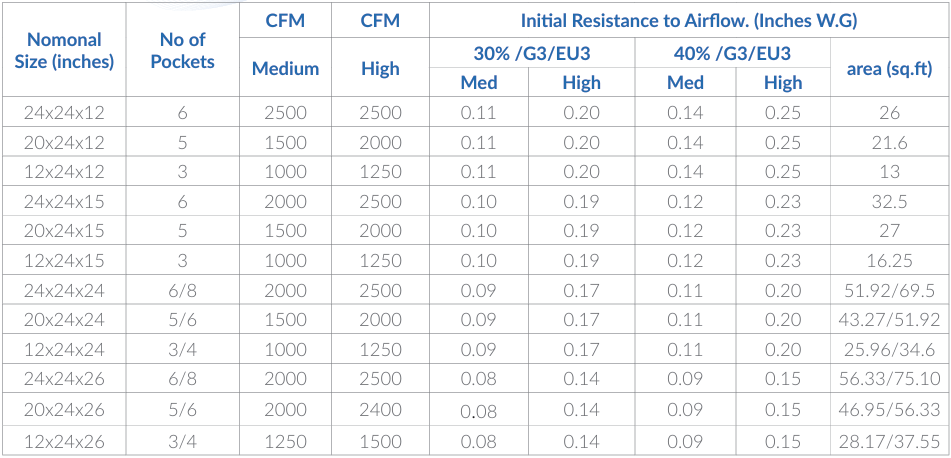

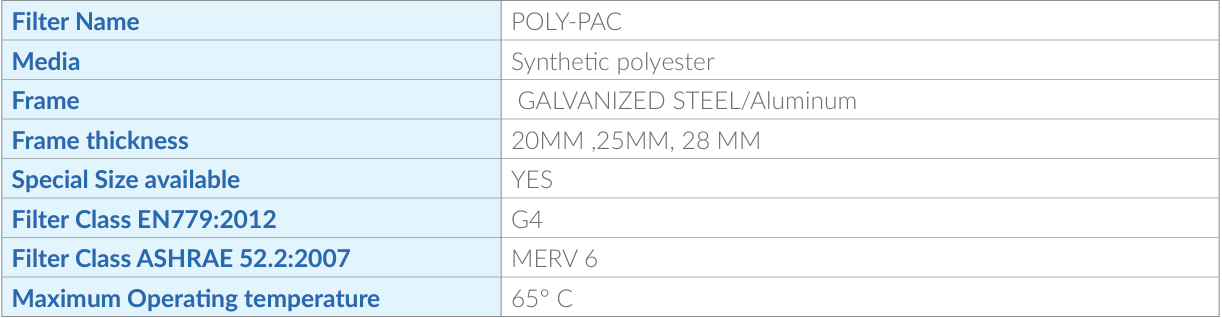

3) SPECIFICATIONS:
