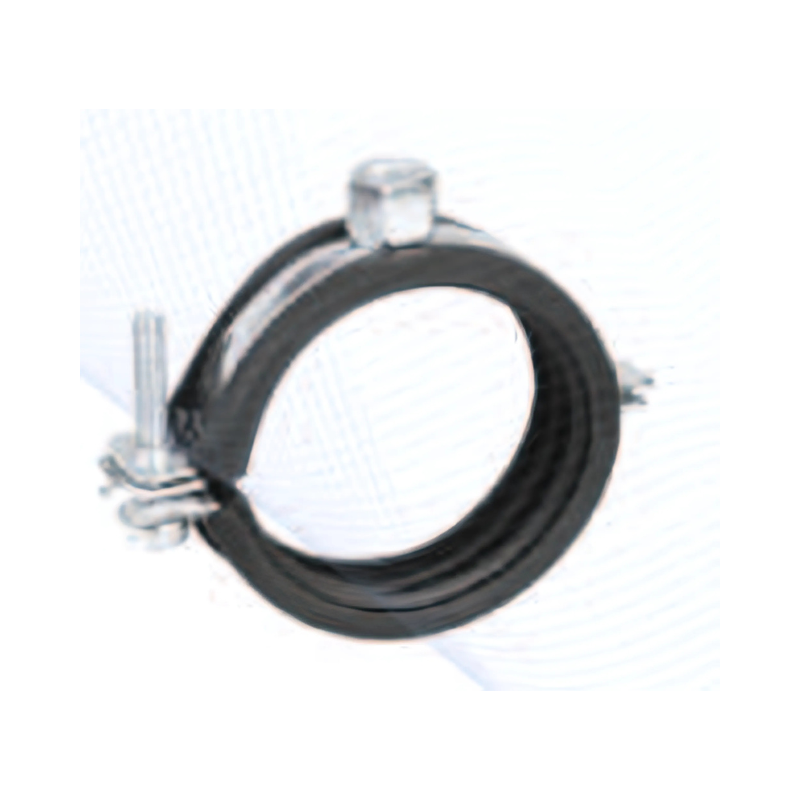

Rubber Lined Split Clamps

Field of Application:

  • Suitable for fixing in housing and industrial areas.
  • Suitable for fastening of drinking water and heating pipes.
  • For indoor use.

Advantages:

  • Made of Mild Steal
  • Proven two piece clamp.
  • The 2 locking screws allow adjustment to accommodate a greater variation in pipe diameter.
  • The pipe is free to move during the installation.
  • Tightening bolts with combination cross-head convenient for power driver.

Chat with Us

Field of Application:

  • Suitable for fixing in housing and industrial areas.
  • Suitable for fastening of drinking water and heating pipes.
  • For indoor use.

Advantages:

  • Made of Mild Steal
  • Proven two piece clamp.
  • The 2 locking screws allow adjustment to accommodate a greater variation in pipe diameter.
  • The pipe is free to move during the installation.
  • Tightening bolts with combination cross-head convenient for power driver.

Construction Features:

  • Strengthened lock bolts for high load capacity.
  • Can be used for both horizontal & vertical.
  • Lock bolt with combi cross recessed head.
  • M6 side screw with PE captive disc.
  • EPDM lining for suppression of sound and vibration.
  • Grooved construction for added strength.

Technical Data:

  • Welded nut M8/M10 with option of M10/m12.

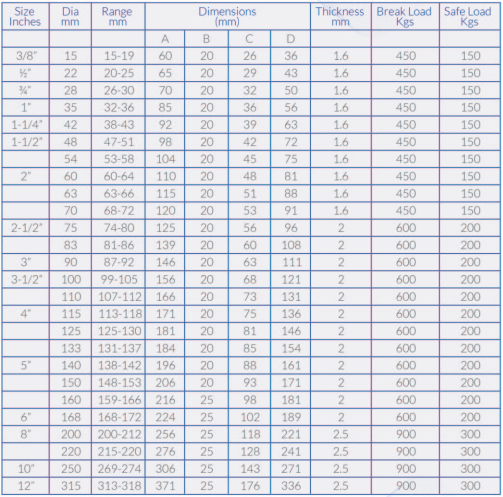

  • Safe and brake load as per chart.
  • M6 side nuts can provided on request.
  • Electro galvanizes as per ASTM B 633 Standards.

  • Measurements are subject to 5% tolerance
