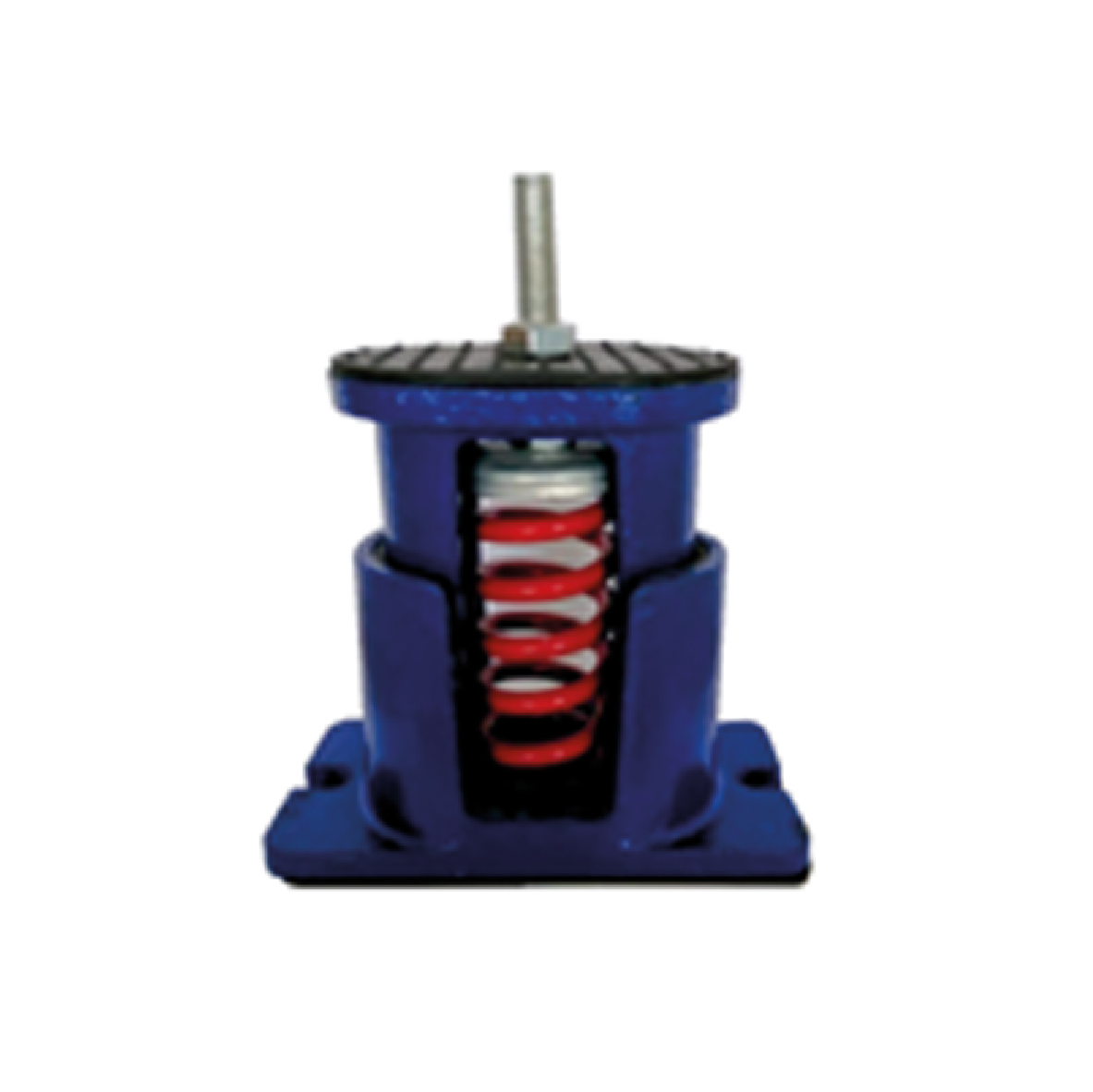

The EXCELL-HVAC SPRING MOUNT ESM originally designed to use for
Isolation of heavy equipment. It is widely used to isolate vibration from every
conceivable type of rotating and reciprocating machine.
Features:
The EXCELL-HVAC SPRING MOUNT ESM has the spring between upper
and bottom housings. An anchor hose is on the bottom housing and the tap
is on the top housing. It allows level control of the bolt with a level bolt and
nut to be used. The spring cap with a bolt guided hole is at the top of the
spring to distribute the load transferred from the level bolt and the
anti-frictioner fixed between upper and bottom housings. It reduces
attenuation and friction caused by left-right, top-down relative
displacement while the equipment runs.
- Application:
Heavy Blowers
- Power Generators
- Pumps
- Refrigerators
- Compressors
- Air conditioning units
- Ventilators
- Heavy Presses
- Cooling Towers
- Large Machinery
- Equipment with a large horizontal reaction
- 25 mm deflection
- Height adjustable
- Powder coated spring and body
