PRODUCT DESCRIPTION
In an effort to respond increasing synthetic media requirements in the air filtration industry, EXCELLECT filter factory offers
the EXCELL-HVAC ULTRA-PAC bag filter for those areas requiring the highest degree of air cleanliness.
IMPORTANT FEATURES
• Create stability even at high airflow, turbulence, pressure surges and high humidity.
• Dust holding capacity increased by 10-30%. • Initial efficiency increased by 5-20%.
• Initial resistance decreased by 5-20%. • Non-shedding, Non-carcinogenic synthetic media.
• Treated media, which inhibit the growth of micro-organisms. • UL listed File R14863
1) DESIGN & CONSTRUCTION

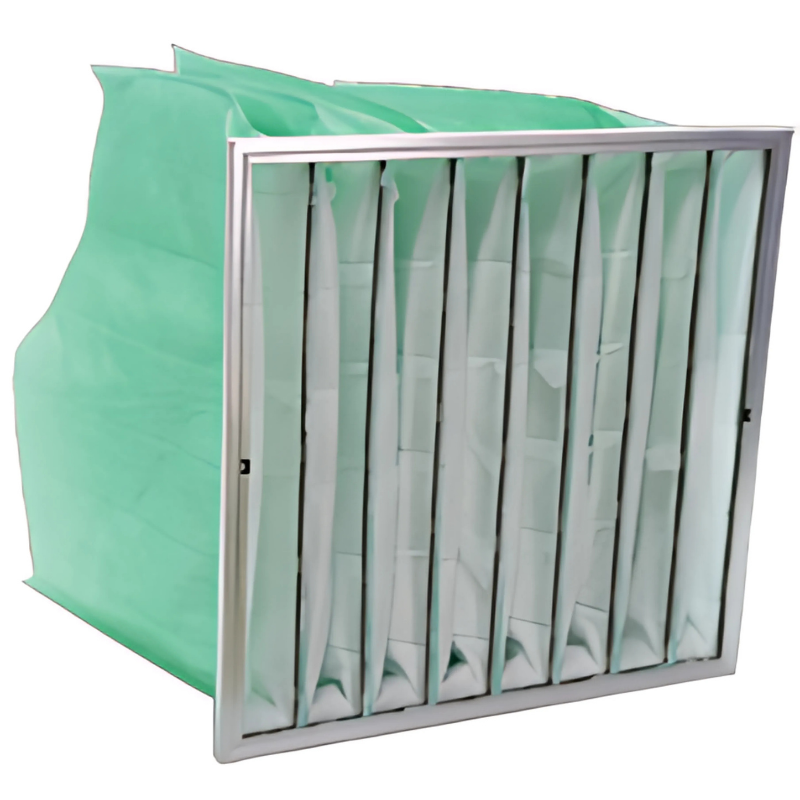

Each EXCELL-HVAC ULTRA-PAC FILTER provides extended surface filtration efficiency through high quality synthetic me
dia formed into individual dust holding pockets. The pockets are created by a multi-row welding process, which promotes
uniform spacing between each pocket, ensuring optimum dirty-air to-media contact.
In addition, each pocket is bonded and sealed to its own J-channel support frame, which is fastened mechanically to a heavy
duty, corrosion resistant galvanized enclosure frame.
EXCELL-HVAC ULTRA-PAC Filters are Certified with Underwriters Laboratories Inc.
Underwriters Laboratories Inc, is a U.S. based independent, non-profit making organization that tests products for safety,
and has the world›s best reputation for unbiased assurance of filter safety.
DUAL STAGE MEDIA
Excellect utilizes a dual stage world-class media in each EXCELL-HVAC ULTRA-PAC Filter. The first stage is a pre-filter,
which consists of coarse polyester fibers designed to arrest larger particulate in the air stream and enhance dirt-loading
ability. The second stage is a layer of micro fine polypropylene fibers spun-bonded and fastened to a polypropylene backing
which captures the remaining smaller particles. This dual stage media configuration increases the overall efficiency and dust
holding capacity of EXCELL-HVAC ULTRA-PAC.
2) ASHRAE RATING
Available in 4 certified color coded efficiency ranges F6 to F9 (EN779) 65%
to 98% (Ashrae Dust Suppo rt)

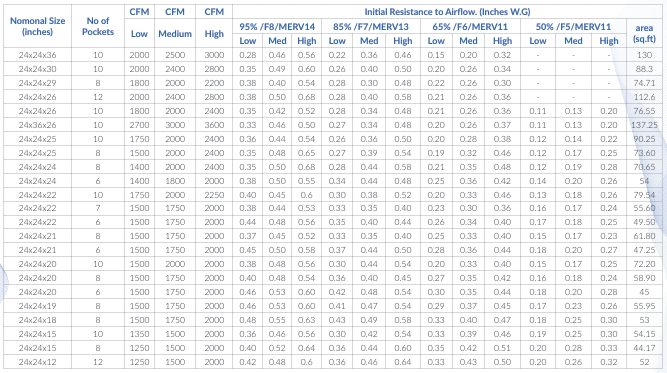

3) SPECIFICATIONS:
