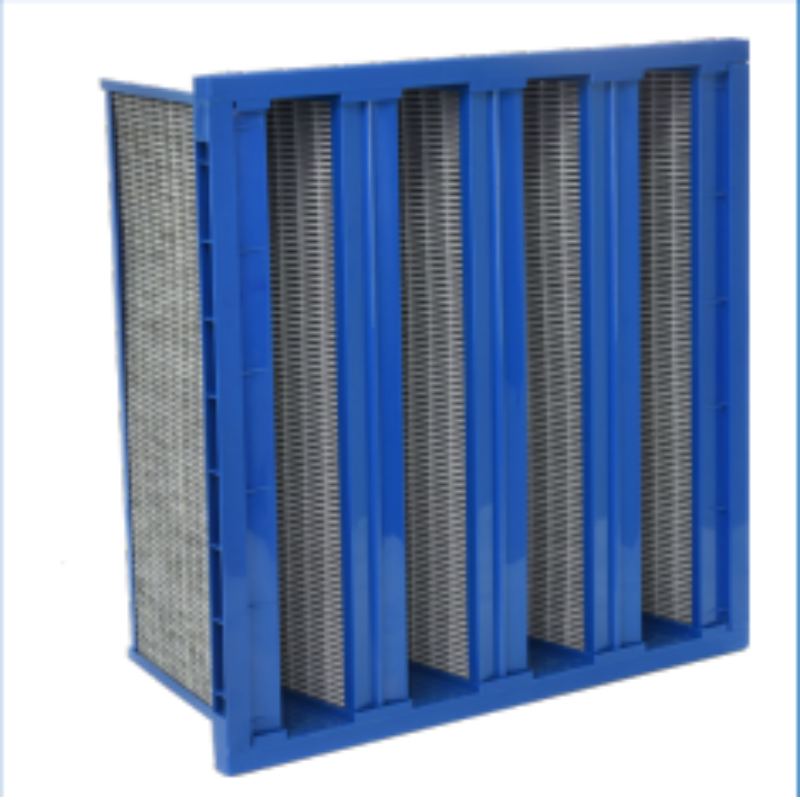

V-CELL CARBON

PRODUCT DESCRIPTION
EXCELL-HVAC V-CELL CARBON extended surface air filter is another superior product from the EXCELLECT family of air
filtration products. The unique design of EXCELL-HVAC V-CELL CARBON FILTER offers the user a wide spectrum of dust
removal coupled with extremely low-pressure drop, the combination of these two values offer high performance filtration,
highest energy savings and low operating costs.

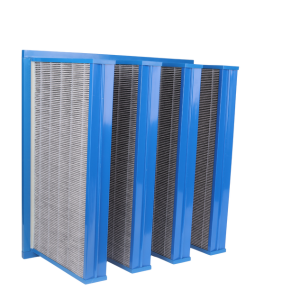

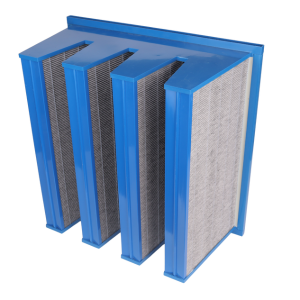

Fabrication of V-Cell Carbon media packs in a multiple V-Bank arrangement substantially increases the amount of Carbon
media contained in the filter. When compared to conventional Rigid or Cartridge type filters, EXCELL-HVAC V-CELL CARBON FILTER provides between 40% and 300% more surface area, assuring the user of abnormally long service life and
economy of operation.
The rigid design with Carbon media packs, Thermo Plastic separators, all plastic cell sides and header make EXCELL-HVAC
V-CELL CARBON FILTERS ideally suited for the most difficult operating conditions, The V-Cell filters are offered in four
distinct ASHRAE rated efficiency ranges. These include 65%, 85%, 95% and 98%+.
This Carbon range of performance levels offers the user virtually every degree of required air cleanliness, these broad range
of efficiencies assure the compatibility of V-Cell in virtually every applications.
IMPORTANT FEATURES
• Ideal for HVAC & Gas turbine applications.
• Low Pressure Drop.
• Very Large surface area.
• Remove odors.
1) DESIGN & CONSTRUCTION
EXCELL-HVAC V-CELL filters are designed to handle large airflow volumes per cell. The extremely low pressure drop, generated by the high ratio of media to filter face area, results in low media velocity and significant energy savings and low
operating costs. The leak free construction offers guaranteed filter efficiency. The filter is extremely strong and durable, yet
lightweight and easy to install,
EXCELL-HVAC V-CELL extended surface Air Filters are constructed from Ultra-fine synthetic media manufactured from
a modified meltdown process. The graded fiber density ensures coarse fibers up stream and fine fibers downstream and
giving optimum particle capturing characteristics.
The media is taken through a unique manufacturing process which includes addition of extruded polypropylene separators
to the pleated media which gives uniform V-Configuration ensuring low resistance and a longer life span.

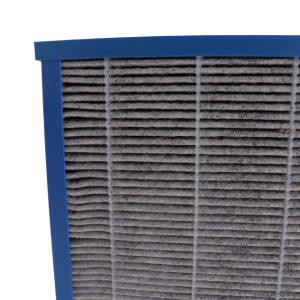

The mini-pleat media are bonded inside aesthetically pleasing polypropylene frame forming a completely unitized, rigid
filters, that does not crack and resists damage during shipping and handling. The entire Carbon media pack is assured leak
free around the entire perimeter of the product.
2) ASHRAE RATING
EXCELL-HVAC V-CELL CARBON FILTERS are available in four distinct ASHRAE efficiency ranges to meet virtually any
need. There are multiple face dimensions offered in each efficiency range. EXCELL-HVAC V-CELL CARBON FILTERS are
furnished in a compact 12” nominal depth. Height and Width dimensions are inter changeable, as V-Cell filters may be
installed with pleats in either vertical or horizontal directions. The product is totally free from maintenance, and is environmentally friendly being made from 100% polypropylene. The filter Carbon Media is anti-microbial. This characteristic is a
by-product of the manufacturing process and does not require addition of any chemicals.

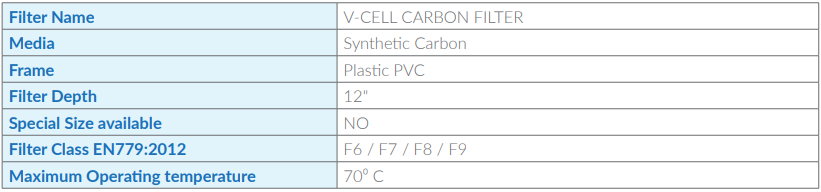

3) SPECIFICATIONS:
